| Type of Product | Straight Back With Seal |
| Monotaro ID | 38562982 |
| Suitable For | (Receptacle) CE05-2A20-4PD-D (Waterproof cable clamp) CE3057-12A-XD |
| Type | Round Type |
Type of Product |
Straight Back With Seal |
Monotaro ID |
38562982 |
Suitable For |
(Receptacle) CE05-2A20-4PD-D (Waterproof cable clamp) CE3057-12A-XD |
Type |
Round Type |

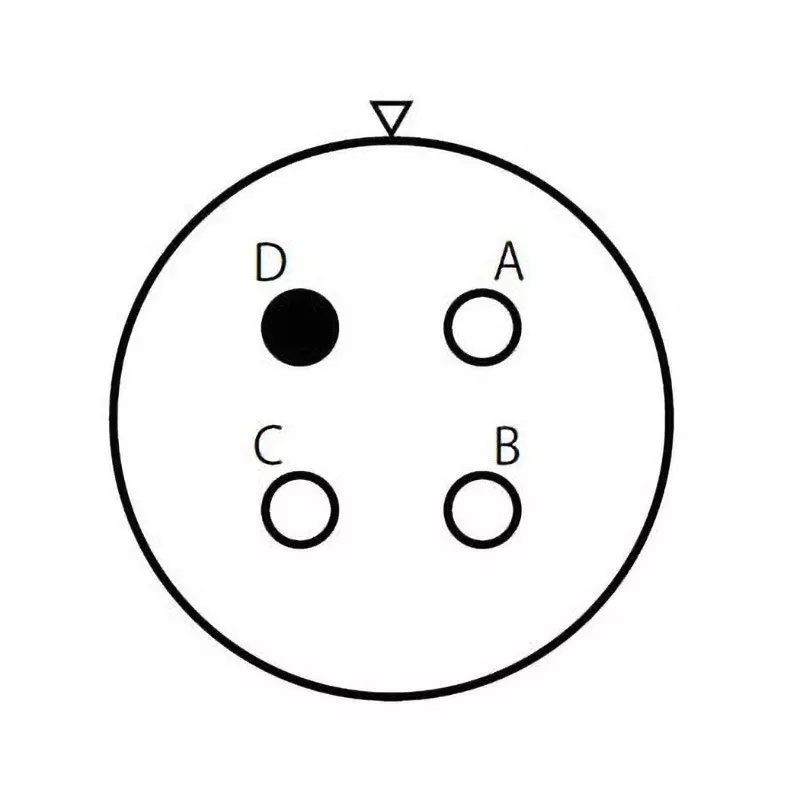

No. of Pole |
4 |
Color |
(Outer Shell) Black |
Shape |
Straight |
Model No |
CE05-6A20-4SD-D-BSS |
Country of Origin |
Japan |
Connection Type |
Screw |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Withstand Voltage |
AC 2800V (1 minute) |
Insulation Resistance (MOhm) |
5000 or more (DC 500 V) |
Specifications |
Inverted core |
Dimension B (Φmm) |
37.28(+0/-0.38) |
Dimension d |
61 mm or more |
Operating Temperature (c) |
-55 to +125℃ |
Rated Voltage (V) |
AC 250 |
Rated Current (A) |
23 |
Surface Treatment |
(Outer Shell) Trivalent Chromate |
Dimension C (Φmm) |
35.2(±0.8) |
Dimension E (Φmm) |
31.6 mm |
Connector Shape |
Straight plug (with straight back shell) |
Current Capacity (Amps) |
Up to 23 (per Contact) (comprehensive connector) 62.5 |
Standard to Conform |
(TUV)R9451254 |
