| Type of Product | With Angle Back Shell |
| Monotaro ID | 38563192 |
| Suitable For | (Receptacle) CE05-2A24-10PD-D (Waterproof cable clamp) CE3057-16A-XD |
| Type | Round Type |
Type of Product |
With Angle Back Shell |
Monotaro ID |
38563192 |
Suitable For |
(Receptacle) CE05-2A24-10PD-D (Waterproof cable clamp) CE3057-16A-XD |
Type |
Round Type |

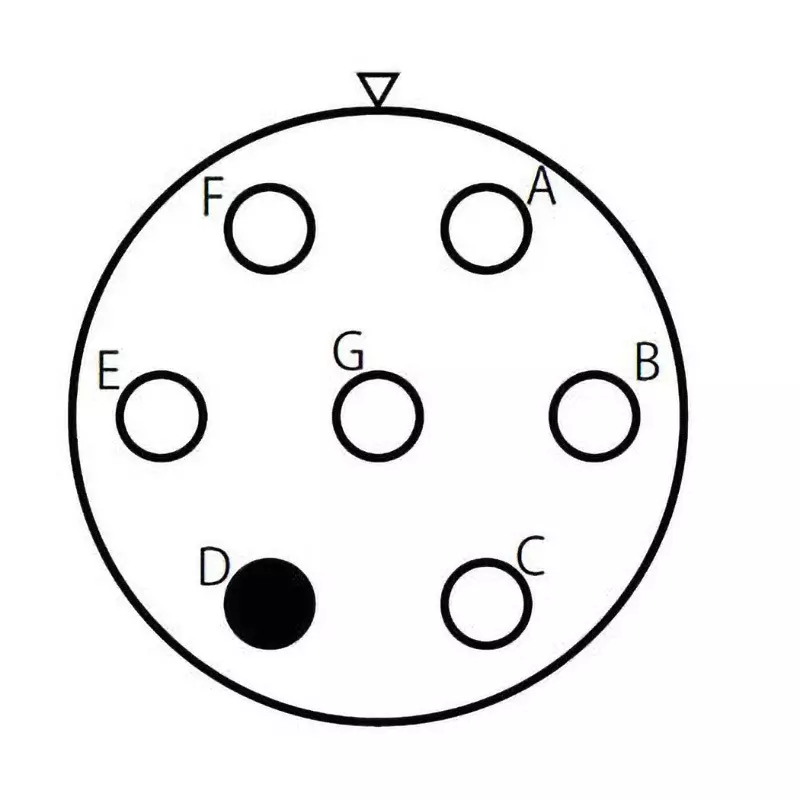

No. of Pole |
7 |
Color |
(Outer Shell) Black |
Shape |
Angle |

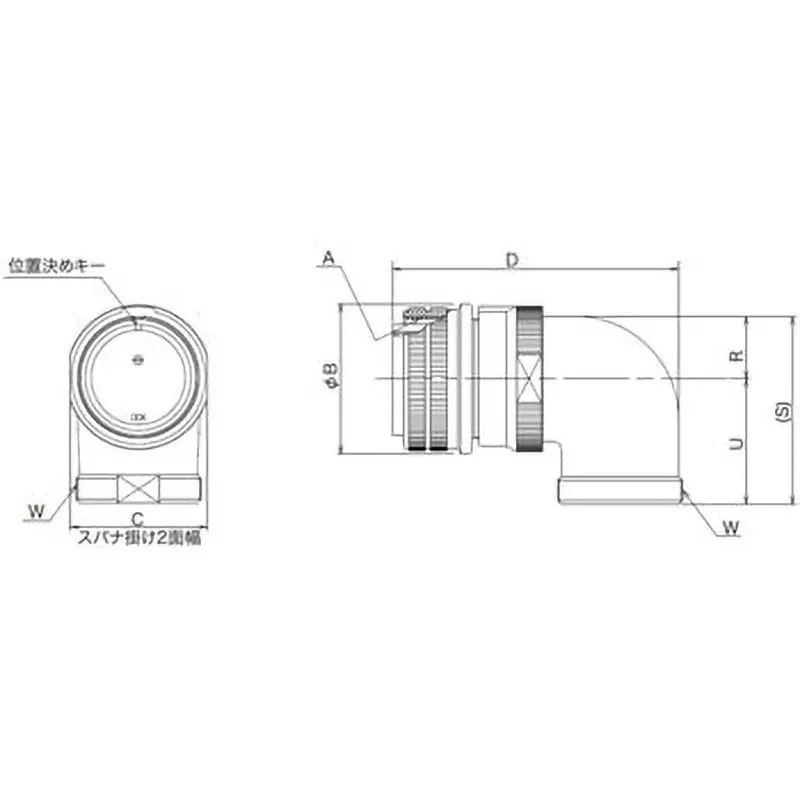

Dimension U (mm) |
36.5(±0.7) |
Model No |
CE05-8A24-10SD-D-BAS |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Withstand Voltage |
AC 2000V (1 minute) |
Insulation Resistance (MOhm) |
5000 or more (DC 500 V) |
Specifications |
No reverse core |
Dimension B (Φmm) |
43.63(+0/-0.38) |
Dimension C |
40 mm |
Dimension d |
86.3 mm or less |
Operating Temperature (c) |
-55 to +125℃ |
Rated Voltage (V) |
AC 250 |
Rated Current (A) |
46 |
Surface Treatment |
(Outer Shell) Trivalent Chromate |
Connector Shape |
Angle plug (with angle back shell) |
Current Capacity (Amps) |
(Per Contact) Max. 46 (Total Of Connectors) 167.4 |
Dimension S |
54.7 mm (±1) |
Dimension R |
18.2 mm (±0.7) |
