Ships within 19 days
Model No
View
View
View
View

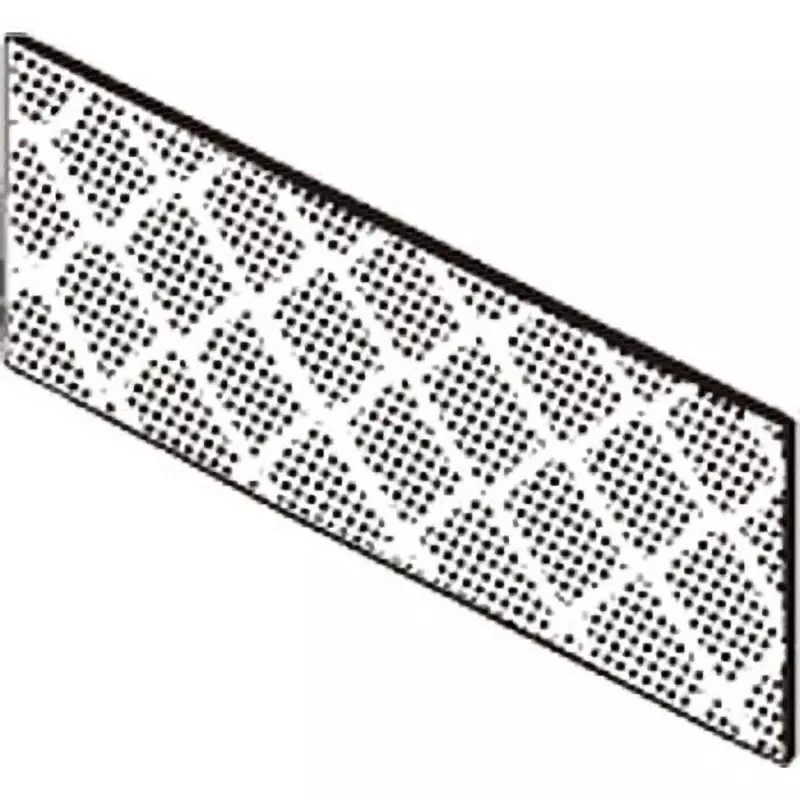

| Type of Product | Reflective Tape/Tape Reflector |
| Monotaro ID | 8585376 |
| Suitable For | E3Z、E3ZM、E3ZM-C、E3S-C、E3JM/E3JK |
| Model No | E39-RS1 |
Type of Product |
Reflective Tape/Tape Reflector |
Monotaro ID |
8585376 |
Suitable For |
E3Z、E3ZM、E3ZM-C、E3S-C、E3JM/E3JK |
Model No |
E39-RS1 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Protection Class |
IEC standard IP67 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Dimension (mm) |
10x35x0.5 |
Ambient Humidity (% RH) |
35 to 85 |
Material (reflector) |
Acrylic |
Ambient Temperature (℃) |
-25 to +55 |
Storage Temperature Range |
-0 to +40℃ |
Positioning Angle |
30° or more |
Storage Humidity Range |
35 to 85 %RH |
Detection Distance (mm) |
E3Z-R / E3ZM-R (Representative example): 700 [150], E3S-C (Representative example): 700 [50], E3JM-R4 @ 4 (T) (Representative example): 1000 [200] ], E3JK-R2 @@ (typical example): 750 [200] |
