Ships within 19 days
Model No
View
View
View
View

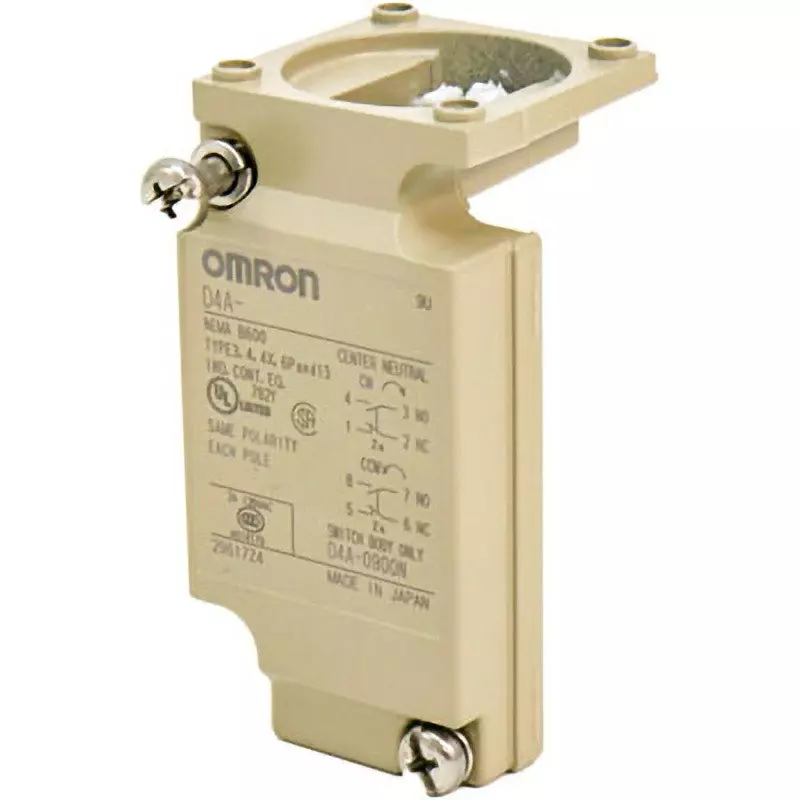

| Type of Product | Small Heavy-Duty Limit Switch Switch Box |
| Monotaro ID | 32574911 |
| Type | Switch Box (4-Circuit Double-Cut Type) |
| Rated Frequency (Hz) | 50/60 |
Type of Product |
Small Heavy-Duty Limit Switch Switch Box |
Monotaro ID |
32574911 |
Type |
Switch Box (4-Circuit Double-Cut Type) |
Rated Frequency (Hz) |
50/60 |
Inrush current (A) |
(Always closed) Up to 30, (Always open) Up to 20 |
Model No |
D4A-0900N |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Mechanical Durability |
30 million times or more * Excluding holding type. |
Protection Class |
(Compliant) IP67, NEMA standards 1, 2, 3, 4, 4X, 5, 6P, 12, 13 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Ambient Humidity to Use |
35% to 95% (with no icing) |
Withstand Voltage |
(Between same pole terminals) AC1000V 50 / 60Hz 1min, (between charging metal part and ground) AC2200V 50 / 60Hz 1min, (between each terminal and non-charging metal part) AC2200V 50 / 60Hz 1min |
Insulation Resistance (MOhm) |
Between the same pole terminals, between the charging metal part and the ground, between each terminal and the non-charging metal part 100 or more (at DC500V mega) |
Temperature Rise |
50deg or less |
Pollution Degree (Environment to Use) |
3 |
Allowable Operation Frequency (Times / Min) |
(Mechanical) 300, (Electrical) 30 |
Contact Resistance (ohm) |
25 or less (initial value) |
Allowable Operating Speed |
1mm to 2m / s (D4A-3101N, rotating lever type) |
Indicator Lamp |
None |
Electrical Durability |
750,000 times or more (4-circuit double-cut type: 125 VAC, 5 A resistive load) |
shock Resistance (m per s2) |
Up to 1000 |
Electric Shock Protection Class |
Class I (with ground terminal) |
Switch box |
Center neutral operation |
