| Type of Product | Small Electromagnetic Lock |
| Monotaro ID | 46533645 |
| Type | Standard type |
| Rated Frequency (Hz) | 50/60 |
Type of Product |

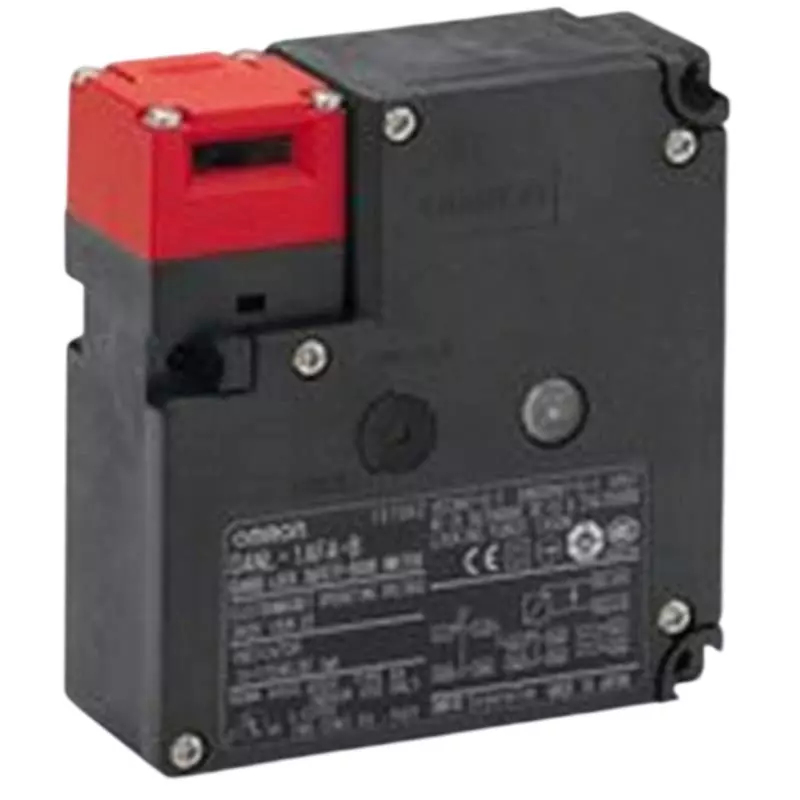

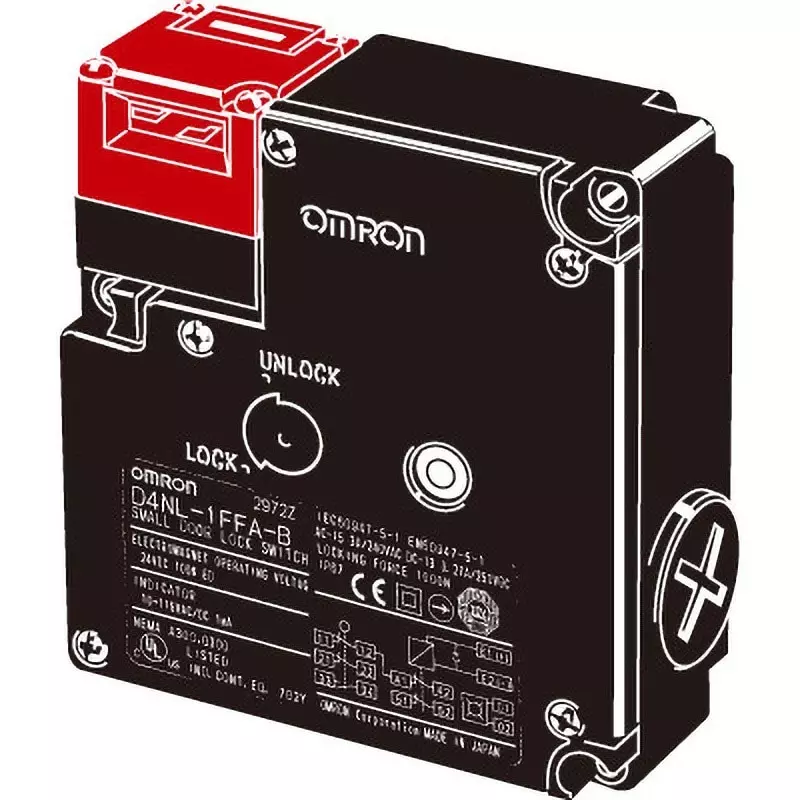

Small Electromagnetic Lock |
Monotaro ID |
46533645 |
Type |
Standard type |
Rated Frequency (Hz) |
50/60 |
Model No |
D4NL-1HFA-B4 |
Country of Origin |
JAPAN |
Import Country |
Direct Import from Japan |
Mechanical Durability |
1,000,000 times or more |
Protection Class |
IP67(EN60947-5-1) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Vibration Resistance (Malfunction) |
10-55 Hz 0.75 mm single amplitude |
Operation Ambient Temperature (°C) |
-10 to 55 (no icing) |
Insulation Resistance (MOhm) |
100 mΩ Or More (With DC 500 V Mega) |
Pollution Degree (Environment to Use) |
Pollution degree 3 (EN60947-5-1) |
Contact Resistance (ohm) |
25 mΩ or Less (per contact) |
Allowable Operating Speed |
0.05 to 0.5 m/s |
Electrical Durability |
500,000 times or more (AC 250 V 3 Amp, with resistive load) |
Electric Shock Protection Class |
Class II (double insulation) |
Minimum Applicable Load |
DC 5 V 1mA resistance load (N level reference value) |
Shock Resistance |
1000 m/s² Or More |
Mounting Side |
Can be installed in 4 directions (front facing when shipped) |
Head Material |
plastic |
Rated Impulse Withstand Voltage (kV) |
Between terminals of the same polarity: 2.5, Between terminals of different polarities: 4, Between each terminal and non-current-carrying metal parts: 6 |
Operating Force |
(Direct opening) Minimum 60 N (EN60947-5-1) |
Rated Insulation Voltage (V) |
(Ui)300(EN60947-5-1) |
