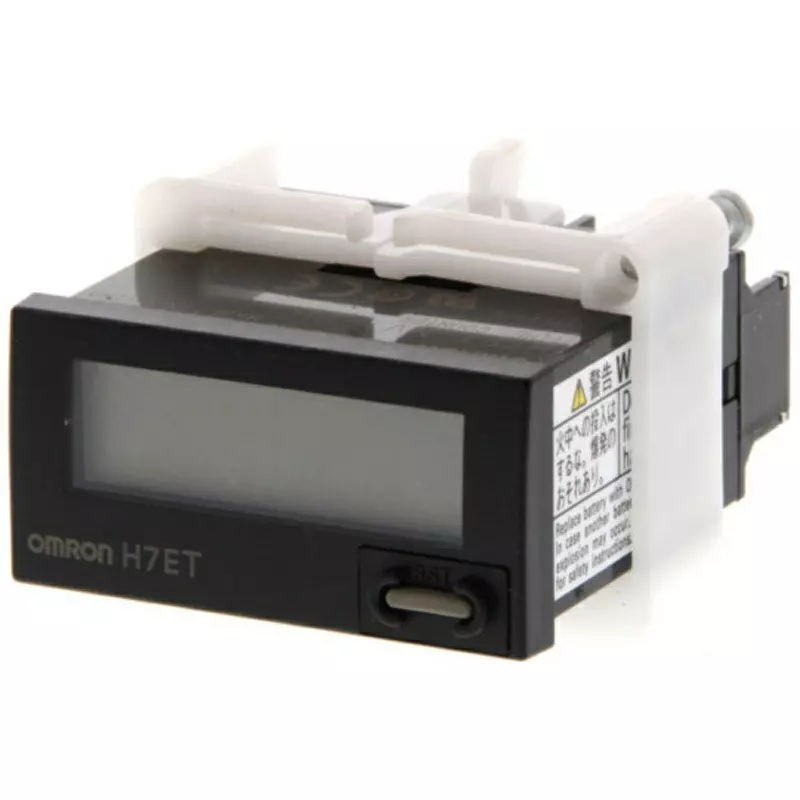

| Type of Product | Compact Time Counter |
| Monotaro ID | 37651616 |
| Mass (g) | About 60 |
| Type | Time counter |
Type of Product |
Compact Time Counter |
Monotaro ID |
37651616 |
Mass (g) |
About 60 |
Type |
Time counter |
Power Supply |
External power / unnecessary (built-in battery) |
Type of Sign |
Embedded mounting |
Model No |
H7ET-NV1-B |
Country of Origin |
Japan |
Operation Type |
Addition |
Import Country |
Direct Import from Japan |
Protection Class |
IEC standard IP66, US NEMA standard type 4 (indoor) However, panel surface only |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Withstand Voltage |
AC1000V 50 / 60Hz 1min, between the conductive terminal and the exposed non-charged metal part |
Included Components |
Waterproof packing, adapter for embedded mounting, unit seal |
Operation Ambient Temperature (°C) |
-10 to +55 (with no condensation or icing) |
Insulation Resistance (MOhm) |
100 or more (at DC500V mega) , between the conductive terminal and the exposed non-charged metal part |
Number of Digit |
7 digits |
Accuracy |
Time: ± 100ppm (25 ℃) |
Character Height (mm) |
8.6 |
Display Type |
LCD (numerical display with liquid crystal) (displayed with zero suppression) |
Exterior Color |
Black |
Terminal Fitting Type |
Embedded mounting |
Adjustable Time |
0s to 999h59min59s / 0.0min to 9999h59.9min (switch switching) |
Input |
Counting input / reset input +, "H" level: DC4.5-30V +, "L" level: DC0-2V + (input impedance approx. 4.7kΩ) |
Reset |
External reset: Manual reset (minimum reset signal time 20ms) |
Storage Temperature |
-25 to +65℃ |
