| Type of Product | Leak Detector |
| Monotaro ID | 24408143 |
| Mass (g) | About 14 |
| Type | No sensor disconnection detection function |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Leak Detector |
Monotaro ID |
24408143 |
Mass (g) |
About 14 |
Type |
No sensor disconnection detection function |
Application |
Leak Detection |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Ambient Humidity to Use |
45 to 85% |
Manufacturer Part Number |
K7L-AT50B |

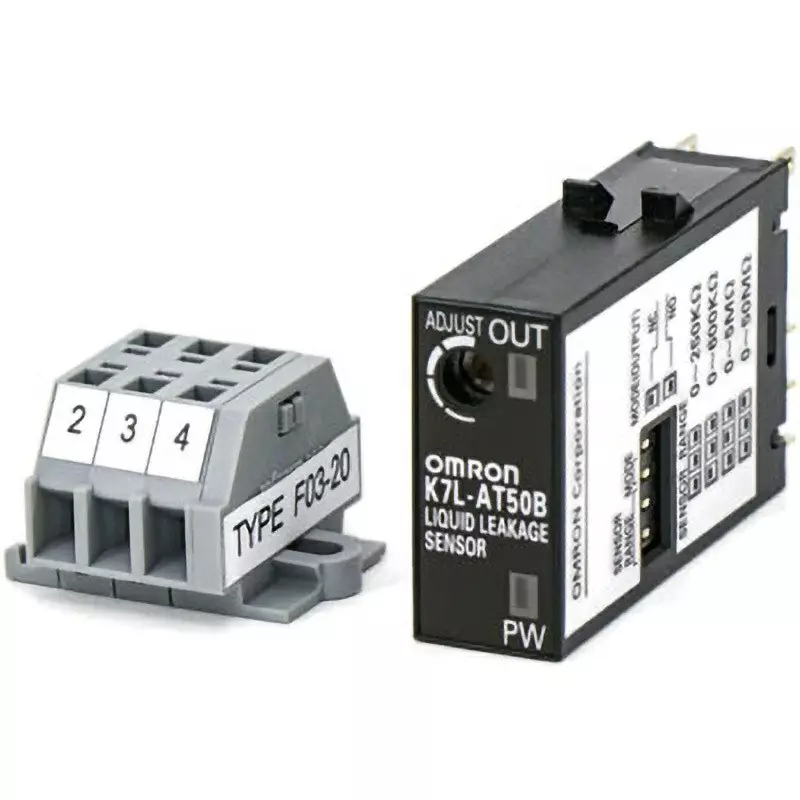

Included Components |
Connection terminal blockx1, settling bean driverx1 |
Output |
NPN connection: Possible, PNP connection (equivalent): Possible |
Operation Ambient Temperature (°C) |
-10 to 55 |
Insulation Resistance (MOhm) |
Measurement point Case and charging part 10 with DC100V |
Power Supply Voltage |
12 to 24 DC (allowable voltage fluctuation range: 10 to 30 DC) |
Specifications |
Liquid Leak Detector |
Remark |
For Push-In Plus terminal block sockets |
Resistance (MΩ) |
(Operation) 0 to 50 Variable range 0: 0 to 0.25, Range 1: 0 to 0.6, Range 2: 0 to 5, Range 3: 0 to 50<br> (Reset) 105% or more of operating resistance value |
Overall Length (mm) |
12.8 |
Output Specifications |
Open collector for leak detection and disconnection detection<br> Max. 30VDC, 100mA<br> Note: When the DIP switch (right end) on the side of the unit is set to the down position,<br> ON: Set the dip switch (right end) on the side of the main unit to the top, and it will be OFF when detected. |
Overall Width (mm) |
28.8 |
Power Consumption (mW) |
1000 or less |
Wiring Distance |
Wiring cable ≤ 50 m, leak detection band ≤ 10 m; wiring cable: 0.75 mm², 600 V VCT 3-core; leak detection band: manufacturer-specified; values based on complete insulation (0.2 mm² also applicable). |
Conditions to Use |
Used in combination with leak detection strips |
