| Type of Product | Take-Up Unit Oil Supply Type |
| Model No | SM-UCT204D1 |
| Shank Diameter (Φmm) | 20 |
| Cover | Steel sheet one-side closing cover |
Type of Product |
Take-Up Unit Oil Supply Type |
Model No |
SM-UCT204D1 |
Shank Diameter (Φmm) |
20 |
Cover |
Steel sheet one-side closing cover |

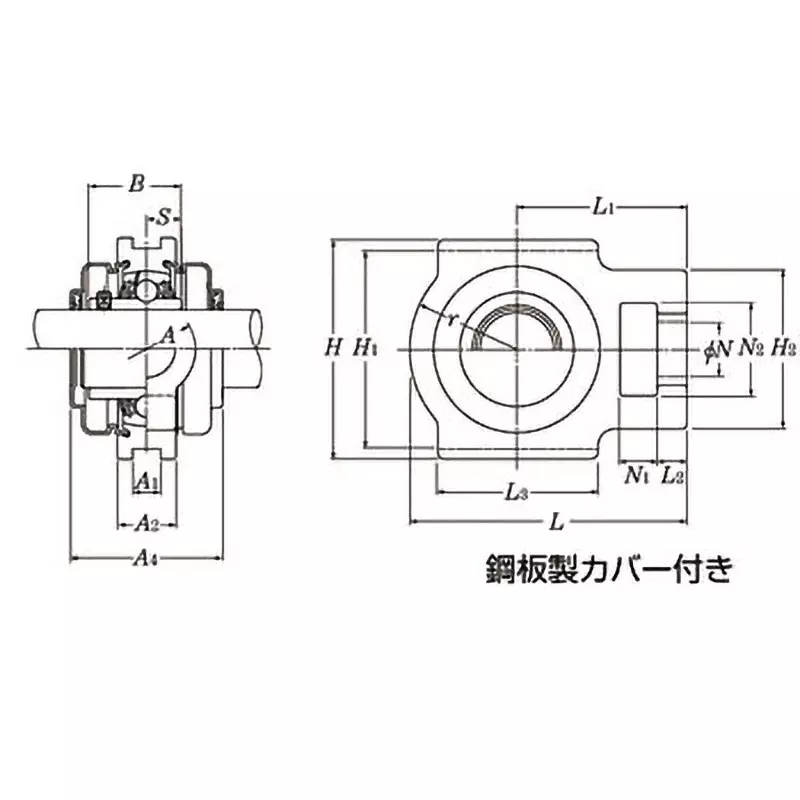

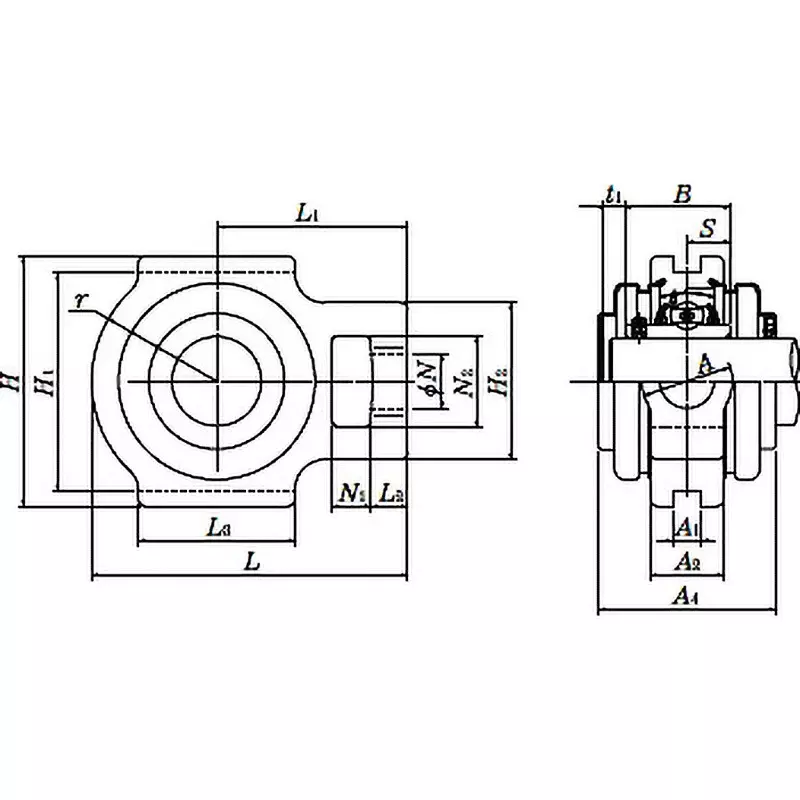

Dimension L3 (mm) |
51 |
Shaft Hole Type |
Cylindrical hole type |
Shape |
Take-up unit |
Basic Static Load Rating (kN) |
6.65 |
Basic Dynamic Load Rating (kN) |
12.8 |
Grease Nipple |
With grease nipple |
Monotaro ID |
396426 |
Load Rank |
For light loads |
Mass (Kg) |
0.8 (reference) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Import Country |
Direct Import from Japan |
Dimension n (mm) |
19 |
Dimensions B (mm) |
31 |
Dimension L1 |
61 mm |
Dimension L2 |
12 mm |
Dimension S |
12.7 mm |
Dimension R |
33 mm |
Dimension L (mm) |
94 |
Dimension T |
2 mm |
Dimensions H (mm) |
89 |
Dimensions A (mm) |
32 |
Mass (g) |
800 g (reference) |
