| Type of Product | Take-Up Unit Oil Supply Type |
| Model No | SM-UCT207D1 |
| Shank Diameter (Φmm) | 35 |
| Cover | Steel sheet one-side closing cover |
Type of Product |
Take-Up Unit Oil Supply Type |
Model No |
SM-UCT207D1 |
Shank Diameter (Φmm) |
35 |
Cover |
Steel sheet one-side closing cover |

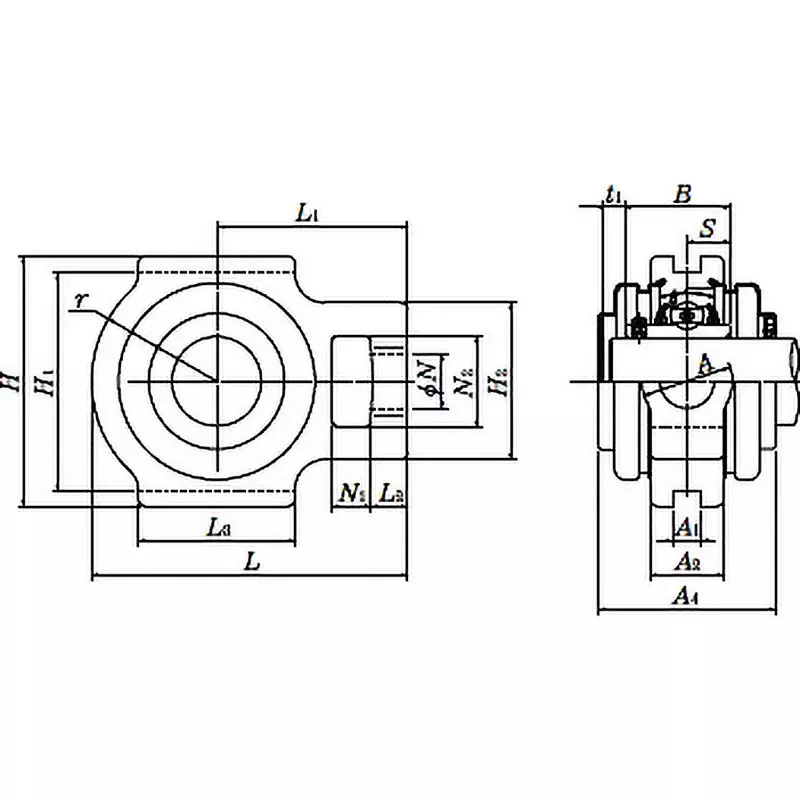

Dimension L3 (mm) |
64 |
Shaft Hole Type |
Cylindrical hole type |
Shape |
Take-up unit |
Basic Static Load Rating (kN) |
15.3 |
Basic Dynamic Load Rating (kN) |
25.7 |
Grease Nipple |
With grease nipple |
Monotaro ID |
396514 |
Load Rank |
For light loads |
Mass (Kg) |
1.7 Kg (Reference) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Import Country |
Direct Import from Japan |
Dimension n (mm) |
22 |
Dimensions B (mm) |
42.9 |
Dimension L1 |
78 mm |
Dimension L2 |
15 mm |
Dimension S |
17.5 mm |
Dimension R |
51 mm |
Dimension L (mm) |
129 |
Dimension T |
3 mm |
Dimensions H (mm) |
102 |
Dimensions A (mm) |
37 |
