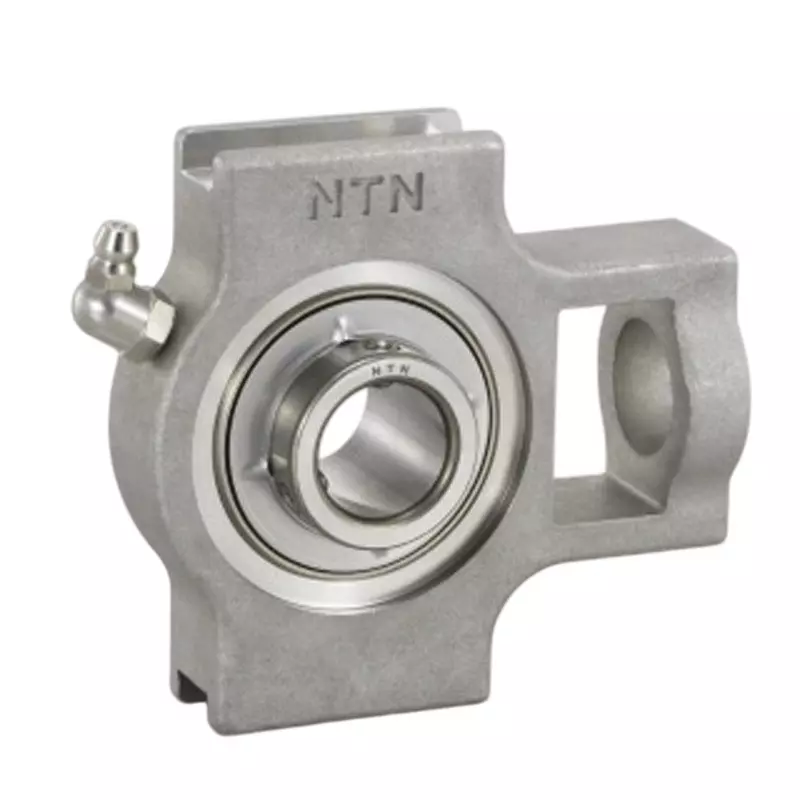

| Type of Product | Stainless Steel Series Bearing Unit Take-Up Type Unit FS-UCTM2 Type Without Cover |
| Model No | F-S-UCTM207D1/L791-S |
| Shank Diameter (Φmm) | 35 |
| Cover | None |
Type of Product |
Stainless Steel Series Bearing Unit Take-Up Type Unit FS-UCTM2 Type Without Cover |
Model No |
F-S-UCTM207D1/L791-S |
Shank Diameter (Φmm) |
35 |
Cover |
None |

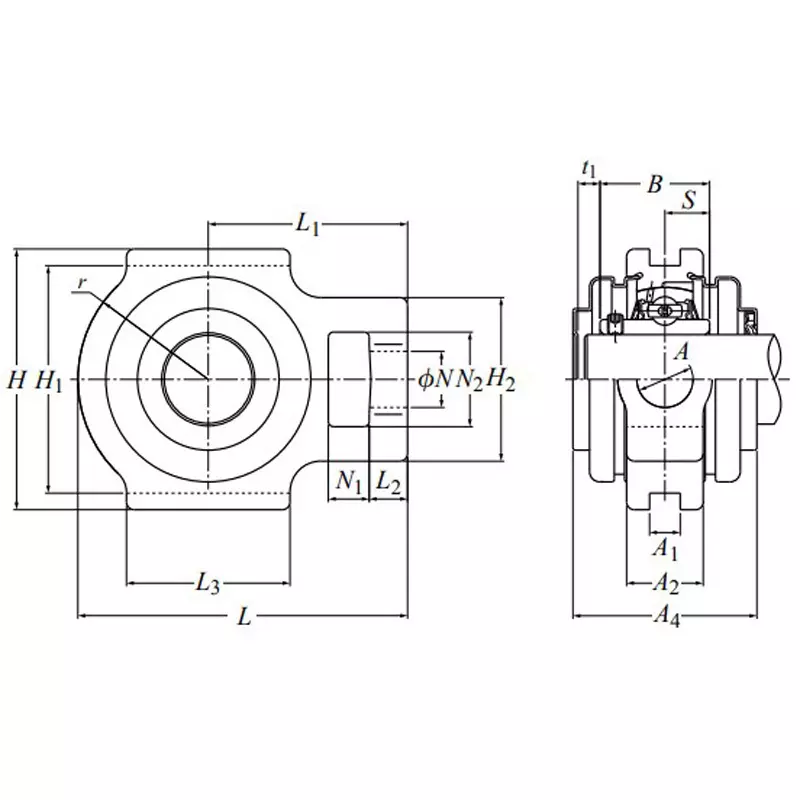

Dimension L3 (mm) |
56 |
Dimension N2 (mm) |
37 |
Shape |
Take-up type |
Dimension N1 (mm) |
18 |
Monotaro ID |
79828098 |
Lubrication |
Refueling type |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Import Country |
Direct Import from Japan |
Dimension n (mm) |
22 |
Dimension L1 |
77 mm |
Dimension L2 |
14 mm |
Dimension R |
45 mm |
Dimension L (mm) |
122 |
Dimensions H (mm) |
101 |
Dimensions A (mm) |
37 |
Dimension A1 |
12 mm |
Dimension H1 |
89 mm |
Dimension H2 |
58 mm |
Grease symbol |
L791 |
Dimension A2 (mm) |
30 |
RoHS Directive |
Correspondence |
