| Type of Product | Stainless Steel Series Bearing Unit Take-Up Type Unit F-FS-UCTM2 Type |
| Model No | F-FS-UCTM201/LP03 |
| Shank Diameter (Φmm) | 12 |
| Cover | Stainless steel cover with rubber seals on both sides |
Type of Product |
Stainless Steel Series Bearing Unit Take-Up Type Unit F-FS-UCTM2 Type |
Model No |
F-FS-UCTM201/LP03 |
Shank Diameter (Φmm) |
12 |
Cover |
Stainless steel cover with rubber seals on both sides |

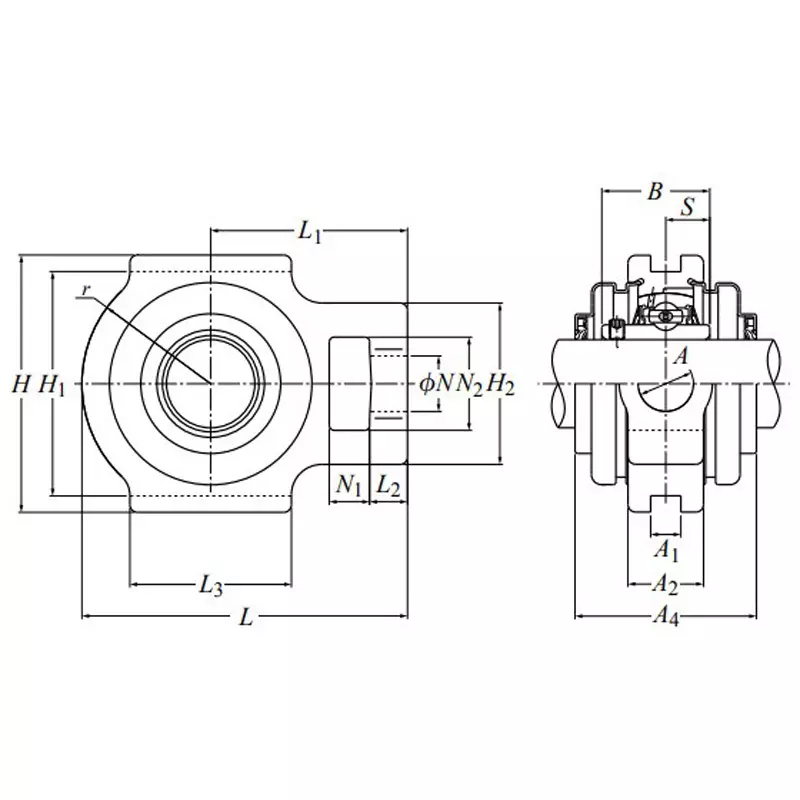

Dimension L3 (mm) |
44 |
Dimension N2 (mm) |
32 |
Shape |
Take-up type |
Dimension N1 (mm) |
18 |
Monotaro ID |
79830207 |
Lubrication |
Oil-free type |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Import Country |
Direct Import from Japan |
Dimension n (mm) |
19 |
Dimension L1 |
60 mm |
Dimension L2 |
11 mm |
Dimension R |
32 mm |
Dimension L (mm) |
92 |
Dimensions H (mm) |
87 |
Dimensions A (mm) |
32 |
Dimension A1 |
12 mm |
Dimension H1 |
76 mm |
Dimension H2 |
46 mm |
Grease symbol |
LP03 |
Dimension A2 (mm) |
21 |
RoHS Directive |
Correspondence |
