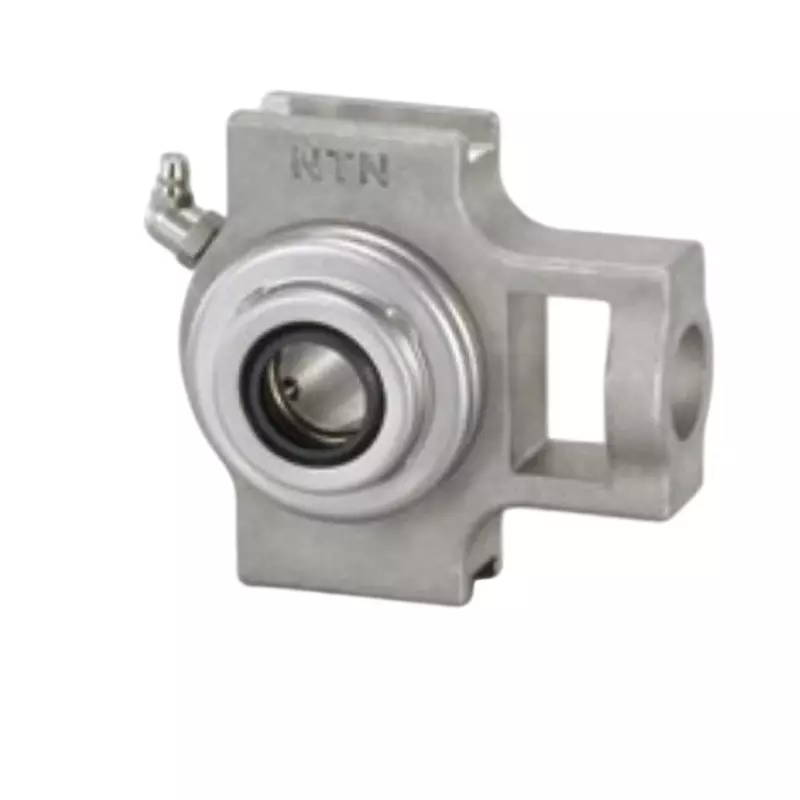

| Type of Product | Stainless Steel Series Bearing Unit Take-Up Type Unit F-FS-UCTM2 Type |
| Model No | F-FS-UCTM206/LP09 |
| Shank Diameter (Φmm) | 30 |
| Cover | Stainless steel cover with rubber seals on both sides |
Type of Product |
Stainless Steel Series Bearing Unit Take-Up Type Unit F-FS-UCTM2 Type |
Model No |
F-FS-UCTM206/LP09 |
Shank Diameter (Φmm) |
30 |
Cover |
Stainless steel cover with rubber seals on both sides |

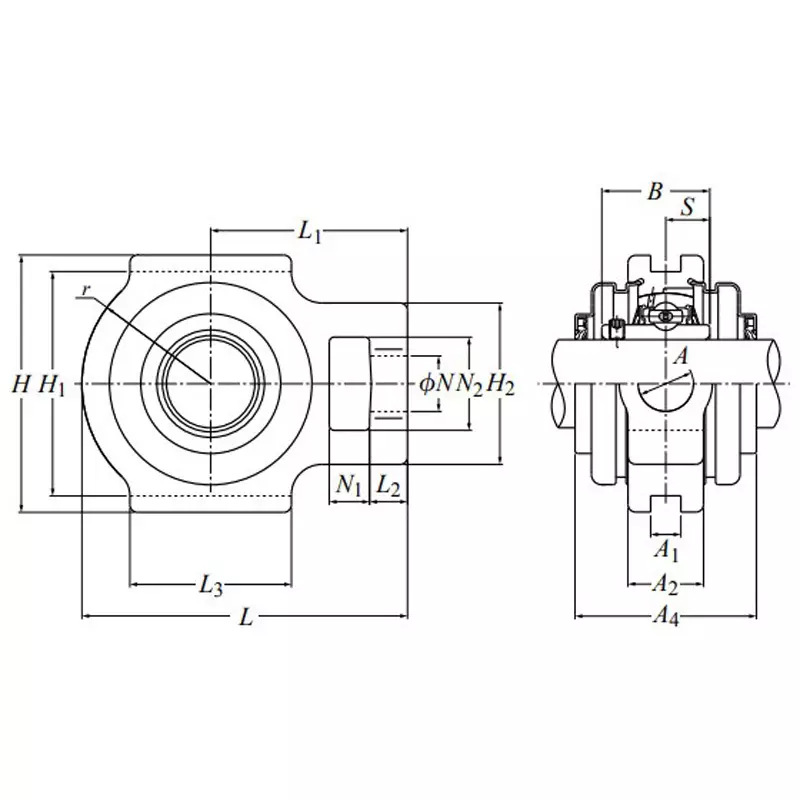

Dimension L3 (mm) |
50 |
Dimension N2 (mm) |
37 |
Shape |
Take-up type |
Dimension N1 (mm) |
18 |
Monotaro ID |
79830365 |
Lubrication |
Oil-free type |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Import Country |
Direct Import from Japan |
Dimension n (mm) |
22 |
Dimension L1 |
69 mm |
Dimension L2 |
11 mm |
Dimension R |
40 mm |
Dimension L (mm) |
109 |
Dimensions H (mm) |
101 |
Dimensions A (mm) |
37 |
Dimension A1 |
12 mm |
Dimension H1 |
89 mm |
Dimension H2 |
52 mm |
Grease symbol |
LP09 |
Dimension A2 (mm) |
27 |
RoHS Directive |
Correspondence |
