Ships within 25 days
View
View
View
View
| Type of Product | Take-Up Unit Oil Supply Type |
| Model No | SM-UCT212D1 |
| Shank Diameter (Φmm) | 60 |
| Cover | Steel sheet one-side closing cover |
Type of Product |
Take-Up Unit Oil Supply Type |
Model No |
SM-UCT212D1 |
Shank Diameter (Φmm) |
60 |
Cover |
Steel sheet one-side closing cover |

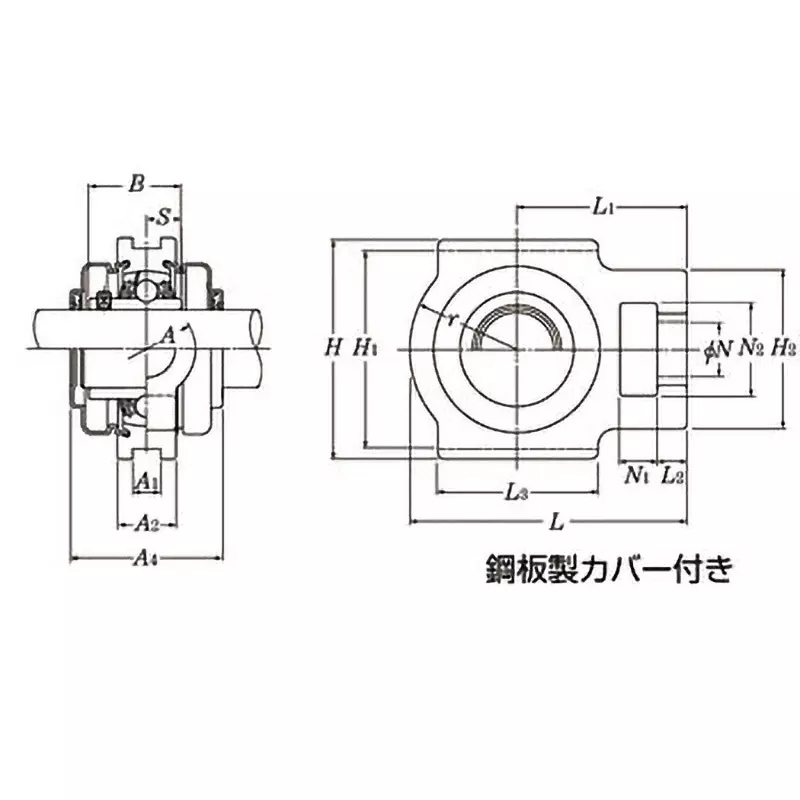

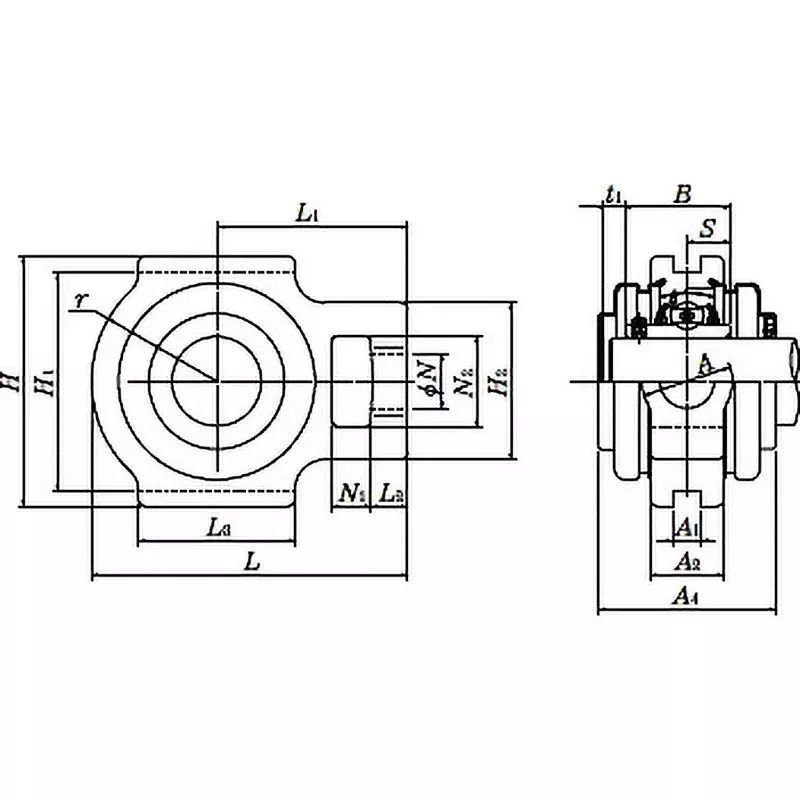

Dimension L3 (mm) |
102 |
Shaft Hole Type |
Cylindrical hole type |
Shape |
Take-up unit |
Basic Static Load Rating (kN) |
36 |
Basic Dynamic Load Rating (kN) |
52.5 |
Grease Nipple |
With grease nipple |
Monotaro ID |
396663 |
Load Rank |
For light loads |
Mass (Kg) |
4.9 Kg (Reference) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Import Country |
Direct Import from Japan |
Dimension n (mm) |
35 |
Dimensions B (mm) |
65.099999999999994 |
Dimension L1 |
119 mm |
Dimension L2 |
21 mm |
Dimension S |
25.4 mm |
Dimension R |
75 mm |
Dimension L (mm) |
194 |
Dimension T |
4 mm |
Dimensions H (mm) |
146 |
Dimensions A (mm) |
64 |
