| Bore Diameter | 49.213 mm (1.9375 inch) |
| Type of Product | Four-Bolt Flange Unit Bearing |
| Model No | UCTX10-115D1 |
| Seal Type | Contact Seal |
Bore Diameter |
49.213 mm (1.9375 inch) |
Type of Product |
Four-Bolt Flange Unit Bearing |
Model No |
UCTX10-115D1 |
Seal Type |
Contact Seal |
Locking |
Set Screw |
Seal Material |
Nitrile Rubber |
Lubrication |
Outer Ring / Relubricatable |
Weight |
9.283 lb (≈4.21 Kg) |
Dynamic Load Rating |
43.50 kN |
Bore Type |
Cylindrical |
Static Load Rating |
29.20 kN |
Housing Material |
Cast Iron |
Outside Diameter |
100 mm (3.937 inch) |
Cage Material |
Pressed Steel |
Performance |
Medium Duty |
Clearance |
CN |
End Type |
Open |
Overall Length |
241 mm (9.5 inch) |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Mechanical Solutions |
Bearing Type |
Ball Bearing |

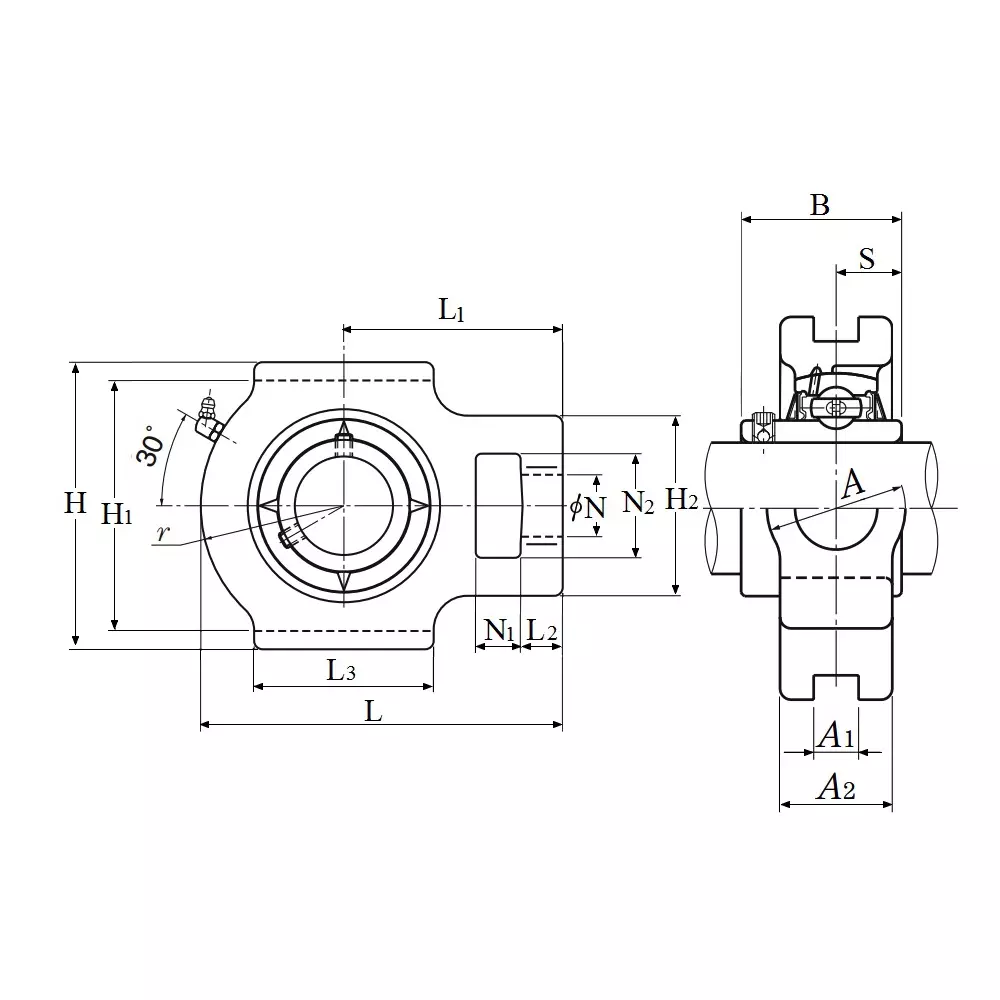

Set Screw Size (S) |
22.2 mm (0.874 inch) |
Mounting Hole Diameter (N) |
20 mm (0.781 inch) |
Precision |
ISO Class 0 |
Mounting Type |
Square 4-Bolt Flange |
Bearing Number |
UCX10-115D1 |
Base Thickness (H1) |
27 mm (1.063 inch) |
Ball Material |
Through Hardened Steel |
Housing Height (H) |
63.5 mm (2.500 inch) |
Overall Height (H2) |
126 mm (4.969 inch) |
Base Width (A) |
73 mm (2.875 inch) |
Maximum Rotational Speed |
2181 RPM (Grease) |
Operating Temperature |
-40°C to 120°C |
Bearing Width (B) |
55.6 mm (2.189 inch) |
Bolt Hole Center Distance (J) |
171 mm (6.719 inch) |
Housing Construction |
1 Piece |
