Ships within 25 days
View
View
View
View
| Type of Product | Take-Up Unit Oil-Free Type |
| Model No | UCT213 |
| Shank Diameter (Φmm) | 65 |
| Cover | Without cover |
Type of Product |
Take-Up Unit Oil-Free Type |
Model No |
UCT213 |
Shank Diameter (Φmm) |
65 |
Cover |
Without cover |

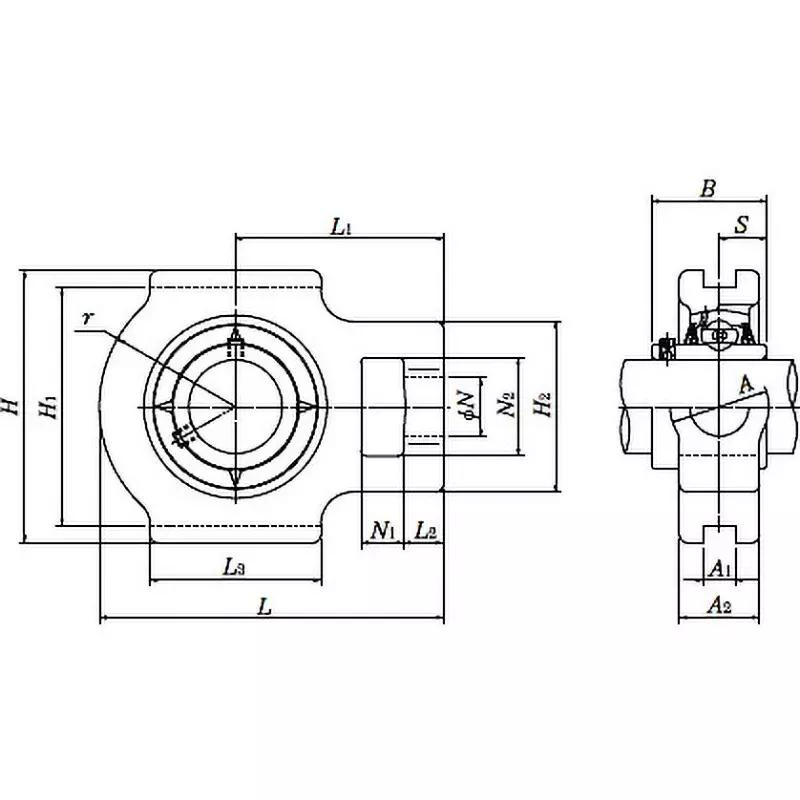

Dimension L3 (mm) |
121 |
Shaft Hole Type |
Cylindrical hole type |
Shape |
Take-up unit |
Basic Static Load Rating (kN) |
40 |
Basic Dynamic Load Rating (kN) |
57.5 |
Grease Nipple |
No grease nipple |
Monotaro ID |
398325 |
Load Rank |
For light loads |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Import Country |
Direct Import from Japan |
Dimension n (mm) |
41 |
Dimensions B (mm) |
65.099999999999994 |
Dimension L1 |
137 mm |
Dimension L2 |
23 mm |
Dimension S |
25.4 mm |
Dimension R |
87 mm |
Dimension L (mm) |
224 |
Dimensions H (mm) |
167 |
Dimensions A (mm) |
70 |
Dimension A1 |
26 mm |
Dimension H1 |
151 mm |
