Ships within 25 days
View
View
View
View
| Type of Product | Take-Up Unit Oil-Free Type |
| Model No | UCT216 |
| Shank Diameter (Φmm) | 80 |
| Cover | Without cover |
Type of Product |
Take-Up Unit Oil-Free Type |
Model No |
UCT216 |
Shank Diameter (Φmm) |
80 |
Cover |
Without cover |

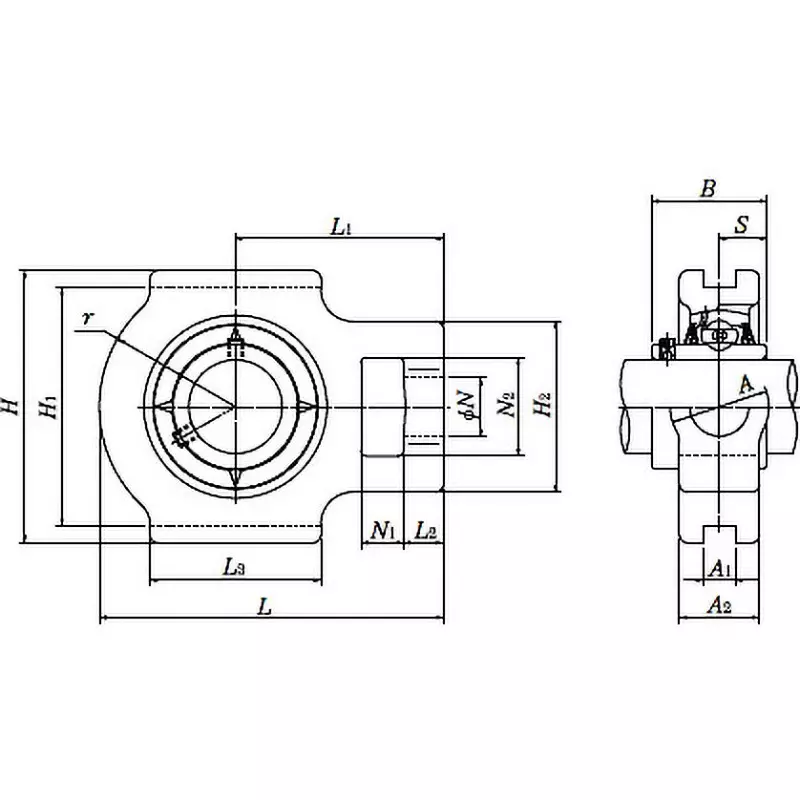

Dimension L3 (mm) |
121 |
Shaft Hole Type |
Cylindrical hole type |
Shape |
Take-up unit |
Basic Static Load Rating (kN) |
53 |
Basic Dynamic Load Rating (kN) |
72.5 |
Grease Nipple |
No grease nipple |
Monotaro ID |
398474 |
Load Rank |
For light loads |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Import Country |
Direct Import from Japan |
Dimension n (mm) |
41 |
Dimensions B (mm) |
82.6 |
Dimension L1 |
140 mm |
Dimension L2 |
23 mm |
Dimension S |
33.3 mm |
Dimension R |
95 mm |
Dimension L (mm) |
235 |
Dimensions H (mm) |
184 |
Dimensions A (mm) |
70 |
Dimension A1 |
26 mm |
Dimension H1 |
165 mm |
