| Country of Origin | Japan |
| Race ring shape | Tapered Roller Bearing |
| Monotaro ID | 56731824 |
| Type of Product | Tapered Roller Bearing 30000 Series |
Country of Origin |
Japan |
Race ring shape |
Tapered Roller Bearing |
Monotaro ID |
56731824 |
Type of Product |
Tapered Roller Bearing 30000 Series |
Model No |
32208JR |

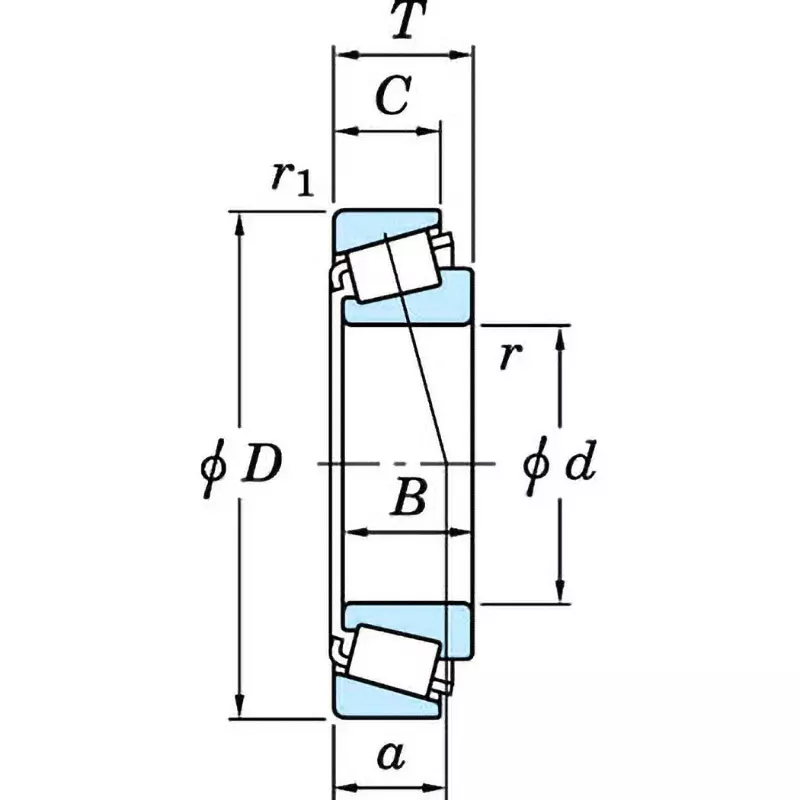

Working Point a (mm) |
19.399999999999999 |
Dimensions C (mm) |
19 |
Dimensions B (mm) |
23 |
Dimensions D (mm) |
40 |
Mass (Kg) |
0.55400000000000005 |
Fatigue limit load Cu (kN) |
13.6 |
Dimension r1 (mm) |
1.5 (minimum) |
Coefficient |
(Axial load) Y1 = 1.60, Y0 = 0.88 |
Constant e |
0.37 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
JTEKT Corporation |
Permissible Speed (min-1) Oil Lubrication |
6600 |
Basic Rated Load Cor (kN) |
90.8 |
Dimension R |
1.5 (minimum) mm |
Basic Rated Load Cr (kN) |
97 |
Dimension T |
24.75 mm |
Permissible Speed (min-1) Grease Lubrication |
5000 |
RoHS Directive |
Correspondence |
