| Country of Origin | Japan |
| Race ring shape | Tapered Roller Bearing |
| Outer Diameter D (Φmm) | 90 |
| Width B (mm) | 23 |
Country of Origin |
Japan |
Race ring shape |
Tapered Roller Bearing |
Outer Diameter D (Φmm) |
90 |
Width B (mm) |
23 |
Monotaro ID |
56731842 |
Type of Product |
Tapered Roller Bearing 30000 Series |
Model No |
32210JR |

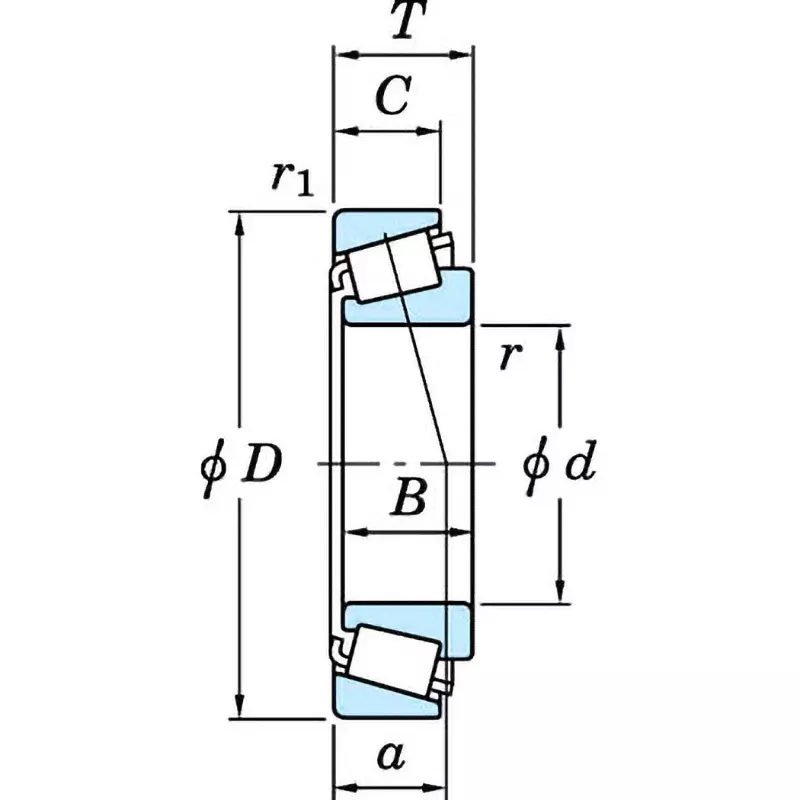

Working Point a (mm) |
20.6 |
Dimensions C (mm) |
19 |
Dimensions B (mm) |
23 |
Dimensions D (mm) |
50 |
Mass (Kg) |
0.64300000000000002 |
Dimension r1 (mm) |
1.5 (minimum) |
Coefficient |
(Axial load) Y1 = 1.43, Y0 = 0.79 |
Reference mass (g) |
643 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
JTEKT Corporation |
Inner Diameter (mm) |
50 |
Chamfer Dimension r (mm) |
1.5(r1=1.5) |
Basic Rated Load Cor (kN) |
105 |
Dimension R |
1.5 (minimum) mm |
Basic Rated Load Cr (kN) |
106 |
Dimension T |
24.75 mm |
Permissible Speed (min-1) Grease Lubrication |
4300 |
RoHS Directive |
Correspondence |
