Ships within 25 days
View
View
View
View
| Country of Origin | Japan |
| Race ring shape | Tapered Roller Bearing |
| Outer Diameter D (Φmm) | 100 |
| Width B (mm) | 25 |
Country of Origin |
Japan |
Race ring shape |
Tapered Roller Bearing |
Outer Diameter D (Φmm) |
100 |
Width B (mm) |
25 |
Monotaro ID |
56731858 |
Type of Product |
Tapered Roller Bearing 30000 Series |
Model No |
32211JR |

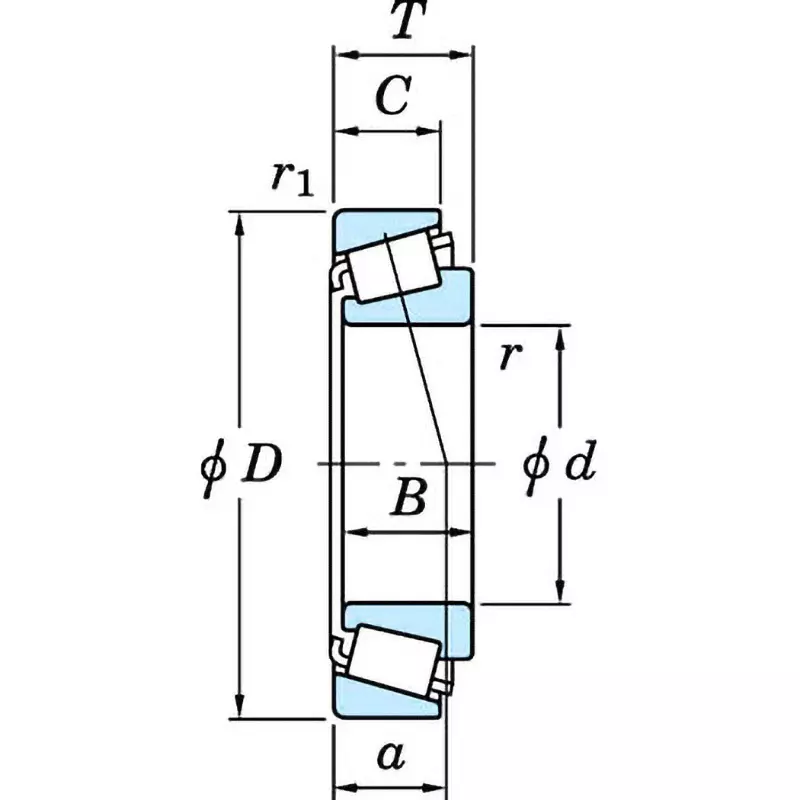

Working Point a (mm) |
25.3 |
Dimensions C (mm) |
27 |
Dimensions B (mm) |
35 |
Dimensions D (mm) |
55 |
Mass (Kg) |
1.18 |
Dimension r1 (mm) |
1.5 (minimum) |
Coefficient |
(Axial load) Y1 = 1.50, Y0 = 0.83 |
Reference mass (g) |
822 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
JTEKT Corporation |
Inner Diameter (mm) |
55 |
Chamfer Dimension r (mm) |
2(r1=1.5) |
Basic Rated Load Cor (kN) |
189 |
Dimension R |
2 (minimum) mm |
Basic Rated Load Cr (kN) |
178 |
Dimension T |
35 mm |
Permissible Speed (min-1) Grease Lubrication |
3900 |
RoHS Directive |
Correspondence |
