| Country of Origin | Japan |
| Race ring shape | Tapered Roller Bearing |
| Outer Diameter D (Φmm) | 72 |
| Width B (mm) | 23 |
Country of Origin |
Japan |
Race ring shape |
Tapered Roller Bearing |
Outer Diameter D (Φmm) |
72 |
Width B (mm) |
23 |
Monotaro ID |
56731815 |
Type of Product |
Tapered Roller Bearing 30000 Series |
Model No |
32207JR |

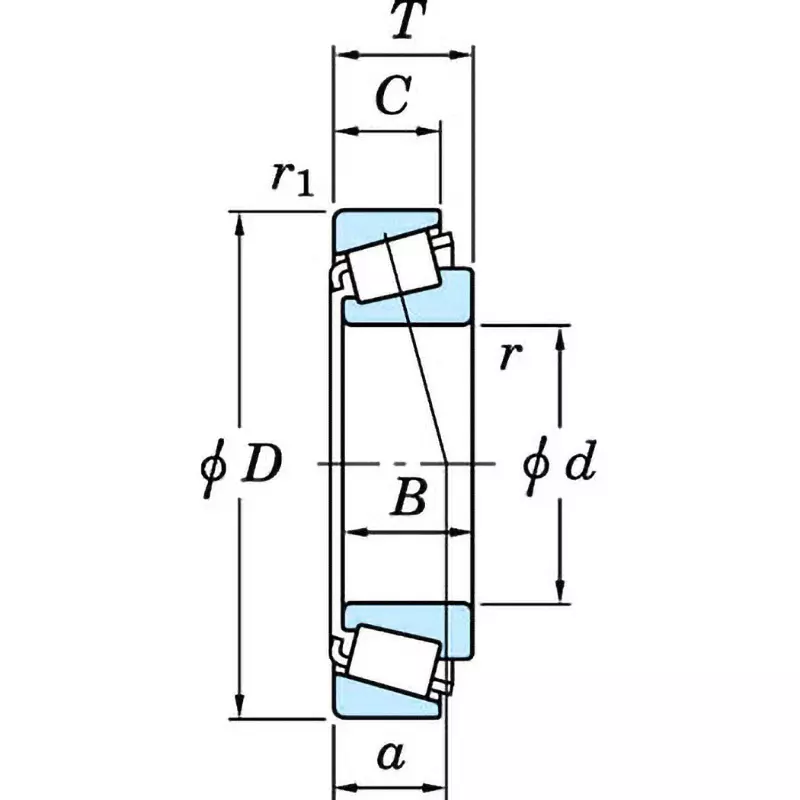

Working Point a (mm) |
18.2 |
Dimensions C (mm) |
19 |
Dimensions B (mm) |
23 |
Dimensions D (mm) |
35 |
Mass (Kg) |
0.45300000000000001 |
Dimension r1 (mm) |
1.5 (minimum) |
Coefficient |
(Axial load) Y1 = 1.60, Y0 = 0.88 |
Reference mass (g) |
453 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
JTEKT Corporation |
Inner Diameter (mm) |
35 |
Chamfer Dimension r (mm) |
1.5(r1=1.5) |
Basic Rated Load Cor (kN) |
82.4 |
Dimension R |
1.5 (minimum) mm |
Basic Rated Load Cr (kN) |
86.9 |
Dimension T |
24.25 mm |
RoHS Directive |
Correspondence |
