| Width T (mm) | 46.5 |
| Load direction | Radial |
| Outer ring type | Flat |
| Inner Diameter d (Φmm) | 90 |
Width T (mm) |
46.5 |
Load direction |
Radial |
Outer ring type |
Flat |
Inner Diameter d (Φmm) |
90 |
Country of Origin |
Japan |
No. of Track Trains |
Single row |
Shield Shape |
Open type |
Race ring shape |

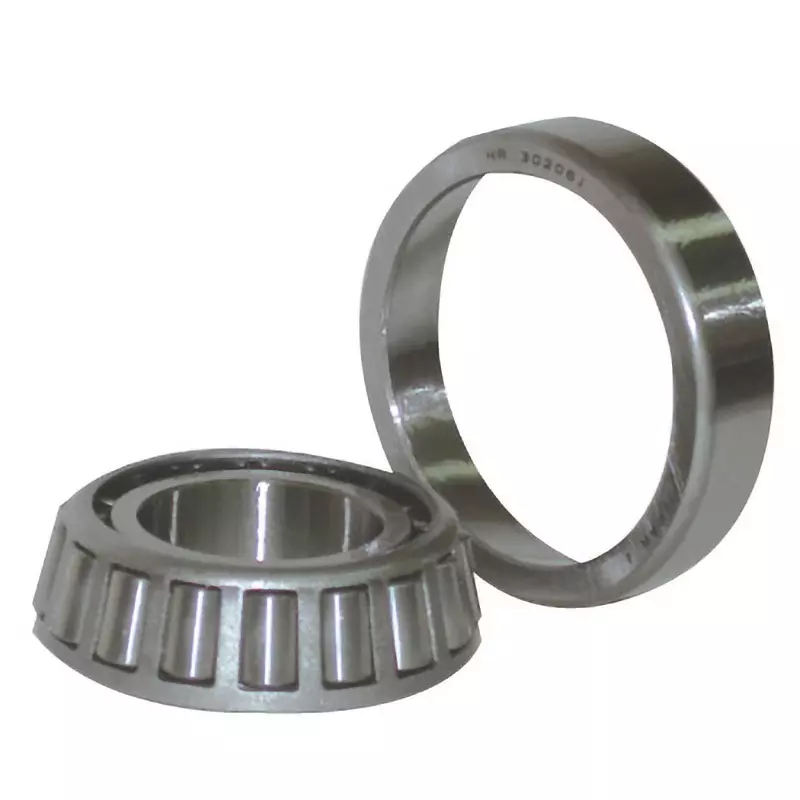

Tapered roller bearing |
Material |
High Carbon Chromium Bearing Steel |
Outer Diameter D (Φmm) |
190 |
Rolling element material |
High carbon chromium bearing steel |
JIS grade |
0 |
Monotaro ID |
68555304 |
Type of Product |
Tapered Roller Bearings 30300 Type |
Model No |
E30318 |
Mass (g) |
5780 |
Dimensions C (mm) |
36 |
Mass (Kg) |
5.78 Kg |
Basic static load rating Cor (N) |
407000 |
Basic dynamic load rating Cr (N) |
336000 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
2100 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
2700 |
Chamfer Dimension r (mm) |
(Inner ring) min.4, (Outer ring) min.3 |
