Ships within 25 days
View
View
View
View

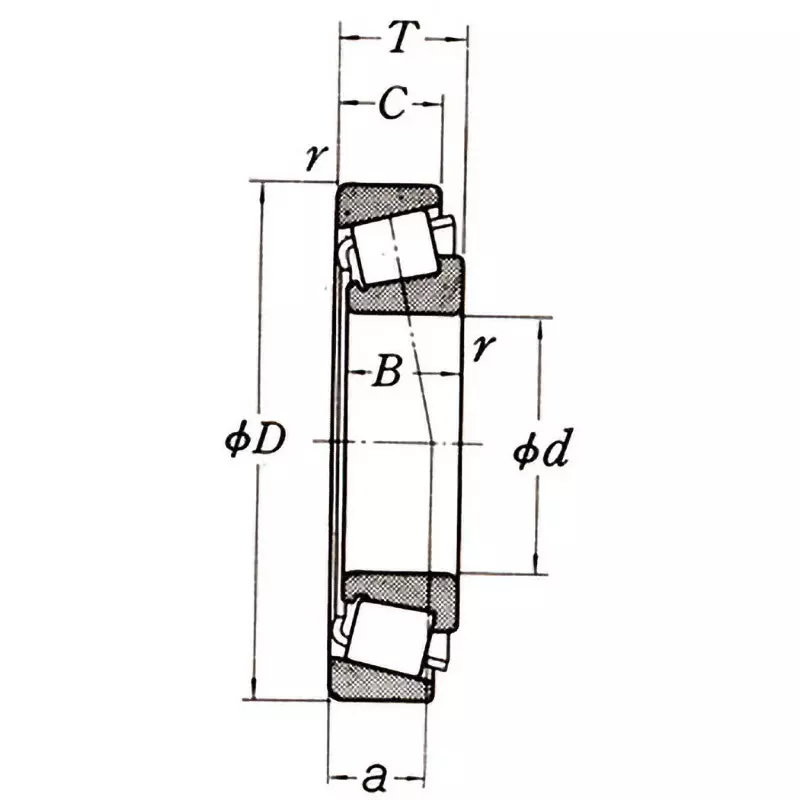

| Width T (mm) | 37 |
| Load direction | Radial |
| Outer ring type | Flat |
| Inner Diameter d (Φmm) | 100 |
Width T (mm) |
37 |
Load direction |
Radial |
Outer ring type |
Flat |
Inner Diameter d (Φmm) |
100 |
Country of Origin |
Japan |
Shield Shape |
Open type |
Material |
High Carbon Chromium Bearing Steel |
Outer Diameter D (Φmm) |
180 |
JIS grade |
0 |
Width B (mm) |
34 |
Monotaro ID |
9971717 |
Type of Product |
Single Row Tapered Roller Bearing 30000 Series |
Model No |
HR30220J |
Contact Angle |
17 ° or less |
Mass (g) |
3780 |
Working Point a (mm) |
36.1 |
Dimensions C (mm) |
29 |
Basic load rating Cr (N) |
255000 |
Minimum inner ring r (mm) |
3 |
Minimum outer ring r (mm) |
2.5 |
Thickness t (mm) |
37 |
Basic load rating Cor (N) |
330000 |
Mass (Kg) |
3.78 Kg |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
2000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
2600 |
