| Weight | 487 g |
| Model No | K-251-HDS-18 |
| Material | Steel Plate Cold Commercial (SPCC) |

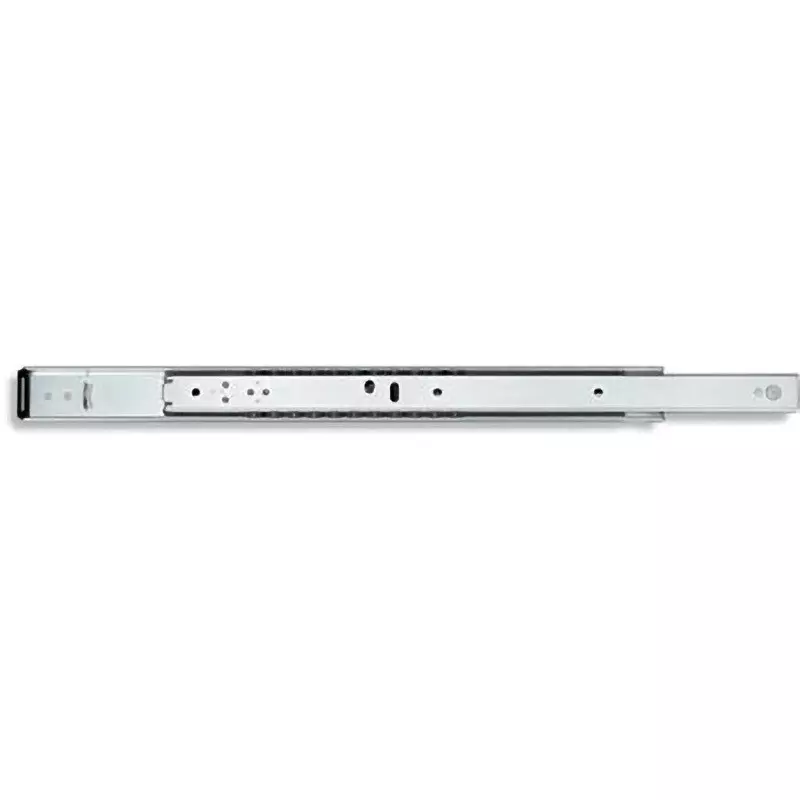

| Type of Product | Slide Rail with Hold Mechanism |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Weight |
487 g |
Model No |
K-251-HDS-18 |
Material |
Steel Plate Cold Commercial (SPCC) |
Type of Product |
Slide Rail with Hold Mechanism |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |

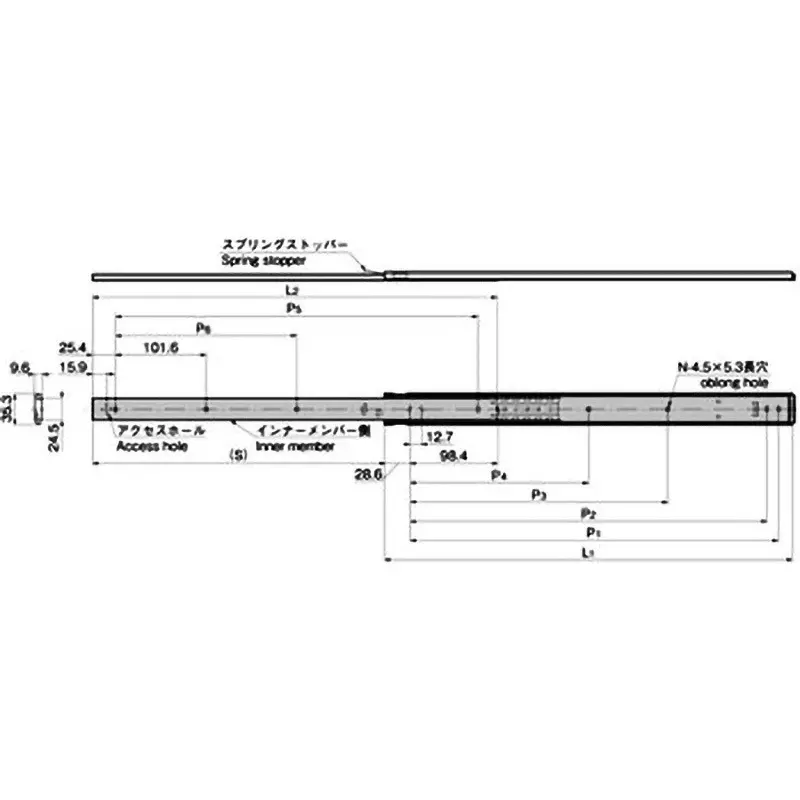

Dimension P2 (mm) |
400 |
Surface Finish Type |
Zinc Plating Chromate Treatment (MFZn-C) |
TAKIGEN Code |
31440 |
Monotaro ID |
61127946 |
Dimensions s (mm) |
327 |
Dimensions l2 (mm) |
453.2 |
Dimension P1 (mm) |
412.7 |
Dimensions L1 (mm) |
457.2 |
Allowable Loads |
421N |
Dimension n (mm) |
11 |
Dimension P3 (mm) |
288.89999999999998 |
Dimension P5 (mm) |
406.4 |
Dimension P6 (mm) |
203.2 |
Dimension P4 (mm) |
200 |
