| Weight | 1.5 g |
| Model No | KC-1261-S-12 |
| Material | Cold Rolled Stainless Steel Sheet (SUS304) |

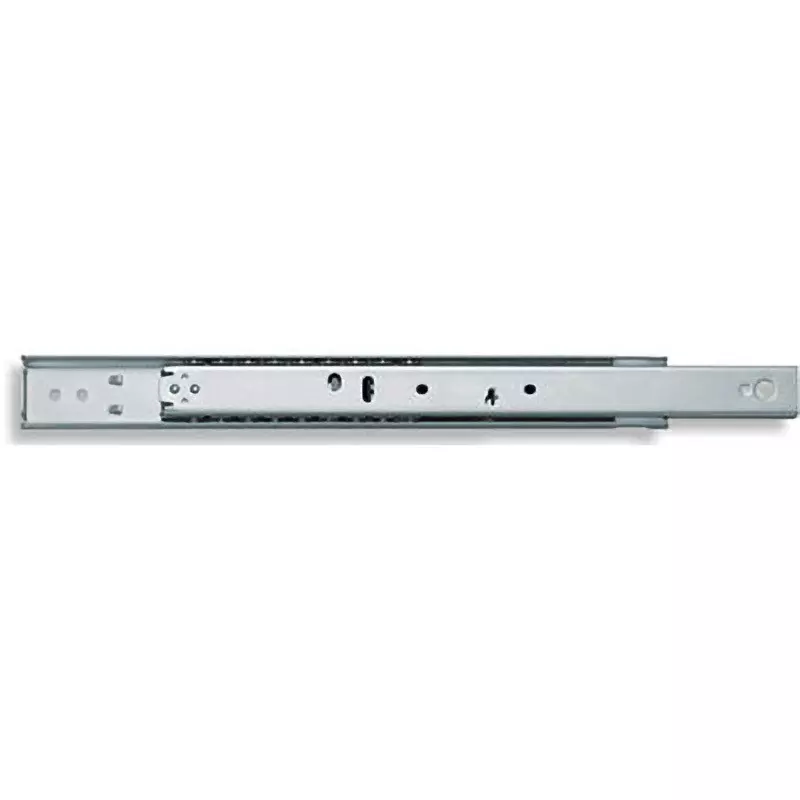

| Type of Product | Slide Rail with Stopper |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Weight |
1.5 g |
Model No |
KC-1261-S-12 |
Material |
Cold Rolled Stainless Steel Sheet (SUS304) |
Type of Product |
Slide Rail with Stopper |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |

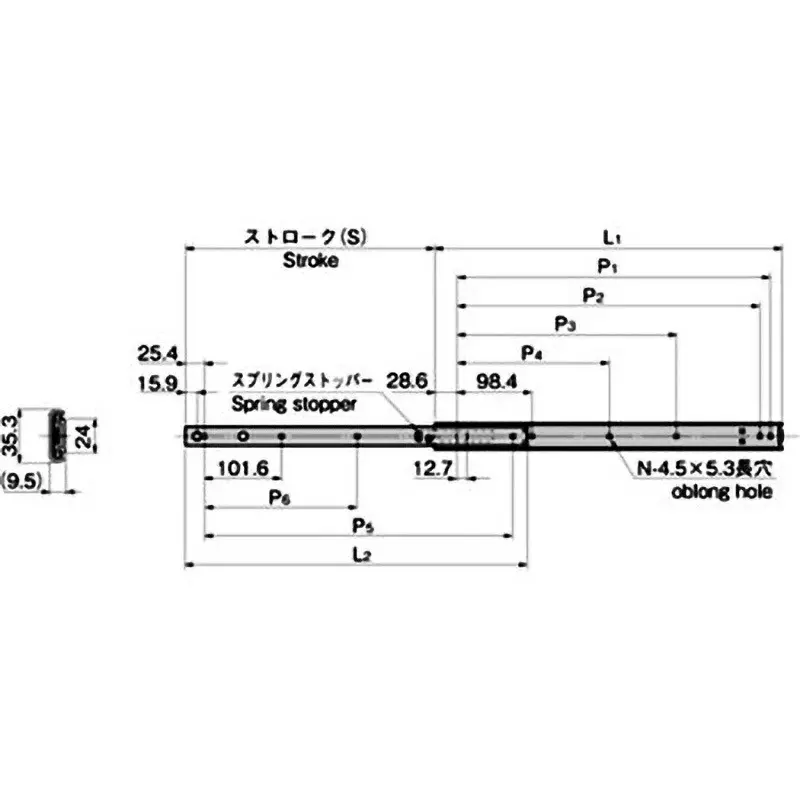

Dimension P2 (mm) |
247.6 |
Surface Finish Type |
Mirror Polishing |
TAKIGEN Code |
22941 |
Monotaro ID |
61129556 |
Dimensions s (mm) |
224 |
Dimensions l2 (mm) |
300.8 |
Dimension P1 (mm) |
260.3 |
Dimensions L1 (mm) |
304.8 |
Allowable Loads |
314N |
Dimension n (mm) |
9 |
Dimension P3 (mm) |
136.5 |
Dimension P6 (mm) |
152.4 |
