| Weight | 381 g |
| Model No | K-251-HDS-14 |
| Material | Steel Plate Cold Commercial (SPCC) |
| Type of Product | Slide Rail with Hold Mechanism |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Weight |
381 g |
Model No |
K-251-HDS-14 |
Material |
Steel Plate Cold Commercial (SPCC) |
Type of Product |
Slide Rail with Hold Mechanism |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |

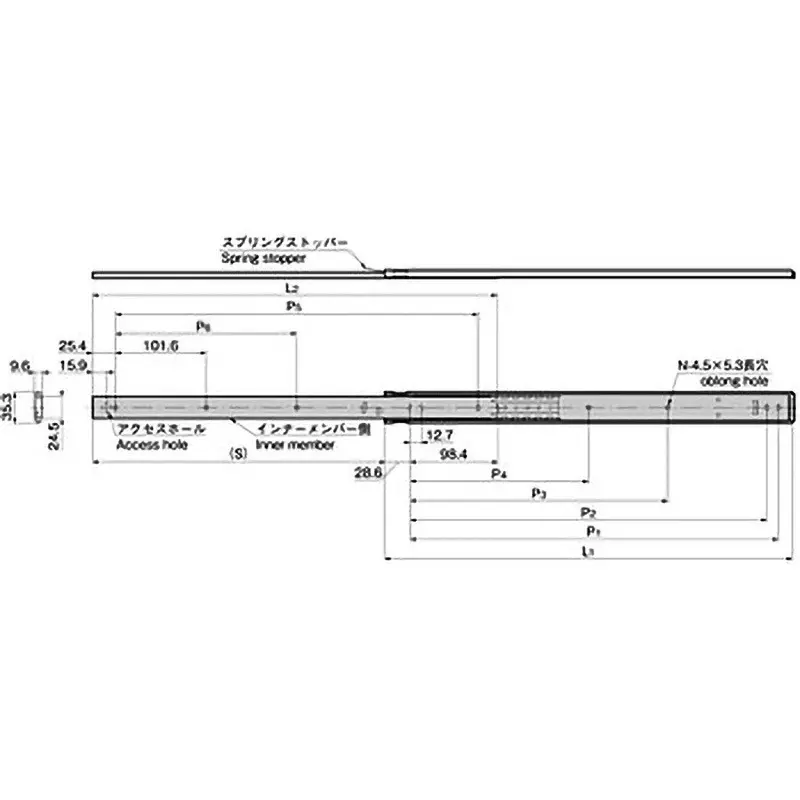

Dimension P2 (mm) |
298.39999999999998 |
Surface Finish Type |
Zinc Plating Chromate Treatment (MFZn-C) |
TAKIGEN Code |
31438 |
Monotaro ID |
62815953 |
Dimensions s (mm) |
226 |
Dimensions l2 (mm) |
351.6 |
Dimension P1 (mm) |
311.10000000000002 |
Dimensions L1 (mm) |
355.6 |
Allowable Loads |
284N |
Dimension n (mm) |
10 |
Dimension P3 (mm) |
187.3 |
Dimension P5 (mm) |
304.8 |
Dimension P6 (mm) |
152.4 |
