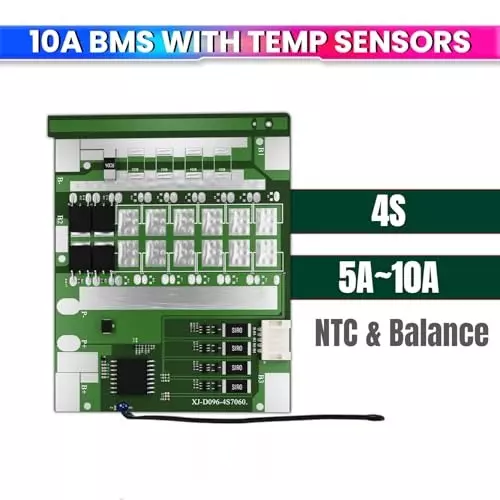

| Type of Product | BMS with NTC Temperature Sensors |
| Model No | 1xBMS-XJ-D096-4S-10A |
| Color | Green |
| Country of Origin | India |
Type of Product |
BMS with NTC Temperature Sensors |
Model No |
1xBMS-XJ-D096-4S-10A |
Color |
Green |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
AMICIKART ONLINE SERVICES PRIVATE LIMITED |

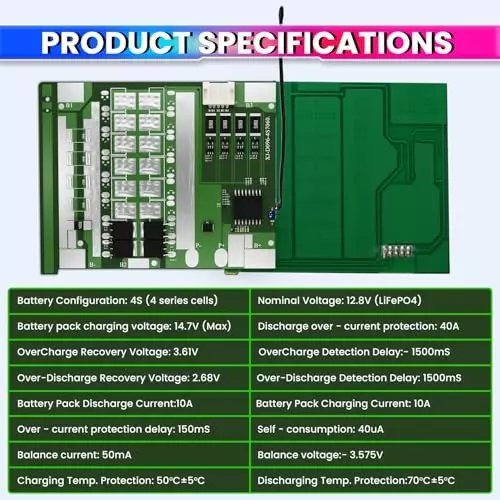

Cell Balancing |
50 mA active balance current, 3.575 V balance voltage |
Internal Resistance |
30 mΩ |
Short-Circuit Protection |
Yes |
Self Consumption |
40 µA |
Peak Overcurrent Protection |
120 A, 150 ms delay |
Over Discharge Protection Voltage |
Single-cell 2.42 V, recovery 2.68 V, delay 1500 ms |
Battery Configuration (Series Cells) |
4S (4 series cells) |
Overcharge Protection |
Single-cell 3.675V, recovery 3.61V, delay 1500ms |
Temperature Protection |
Charging cutoff 50 °C ±5 °C, discharging cutoff 70 °C ±5 °C via NTC sensors |
Nominal Voltage |
12.8 V (LiFePO4) |
