Ships within 19 days
Model No
View
View
View
View

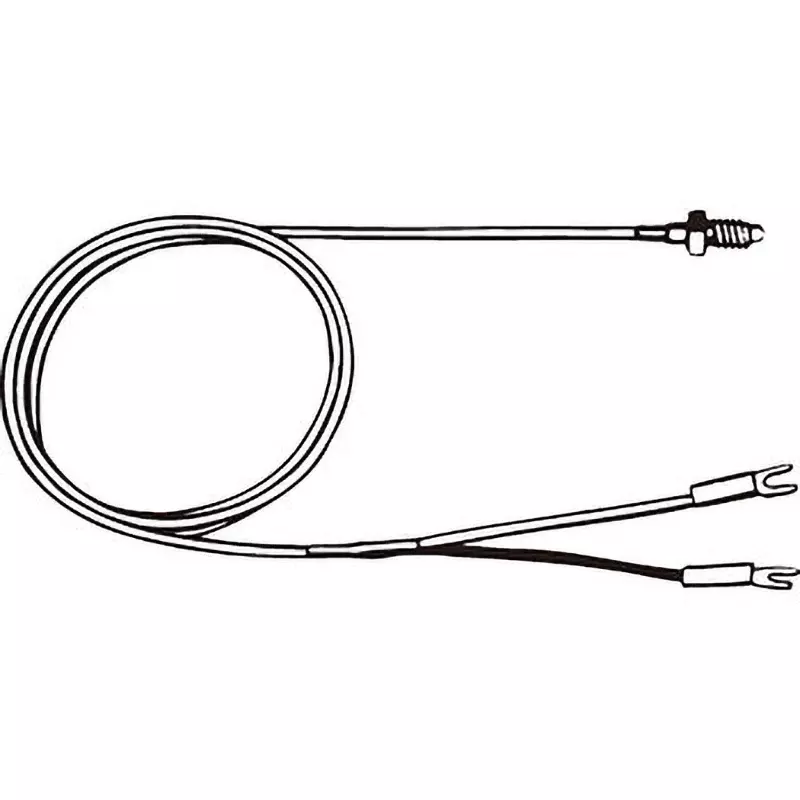

| Type of Product | Temperature Sensor Low Cost Type |
| Model No | E52-CA1DY W1/4 2M |
| Series | E52 Series |
| Type | Screw-Type Lead Wire Direct Outlet |
Type of Product |
Temperature Sensor Low Cost Type |
Model No |
E52-CA1DY W1/4 2M |
Series |
E52 Series |
Type |
Screw-Type Lead Wire Direct Outlet |
Material |
(Protective tube) SUS304 |
Temperature Range |
0~+400 (in dry air) |
Monotaro ID |
46782985 |
Terminal Shape |
Exposed-lead model (Y type crimp terminal for M3.5) |
Lead Wire |
0 to +180℃ |
Wire Type |
K |
Method |
Ground type |
JIS Class |
2 (0.75 class) |
Lead Wire Length (mm) |
2 m |
Wire Diameter (mm) |
0.65 mm(single wire) |
Dimensions C (mm) |
3 mm |
Dimensions A (mm) |
5 mm |
Dimensions B (mm) |
11.5 mm |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Thread Pitch |
W1/4 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Lead Wire Length |
2 m |
