| Type of Product | Temperature Sensor |

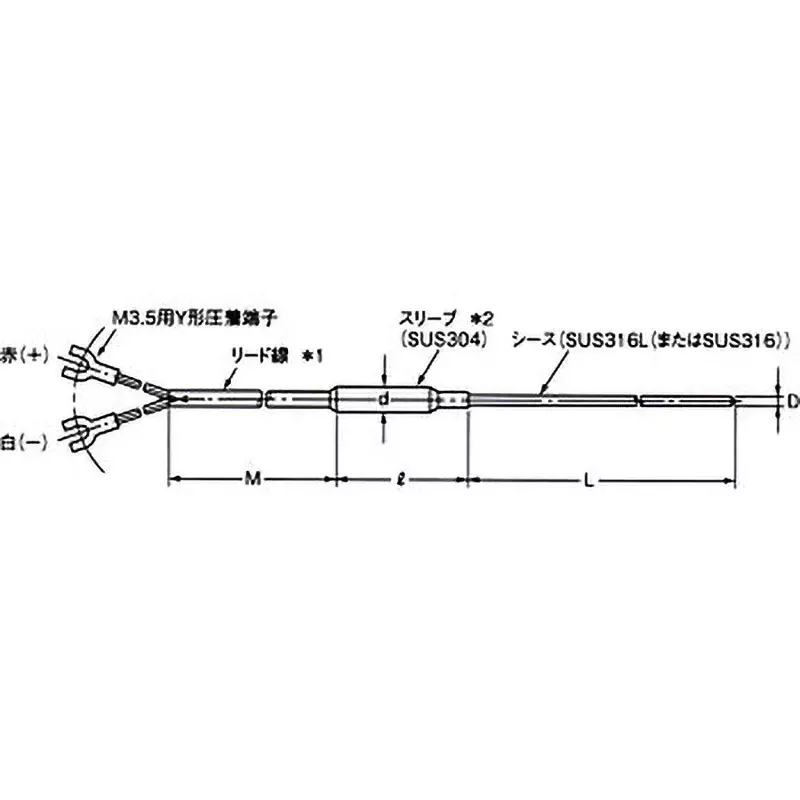

| Model No | E52-CA15AY D=1.6 NETU 4M |
| Type | Exposed-lead model |
| Material | (Sheath) ASTM316L |
Type of Product |
Temperature Sensor |
Model No |
E52-CA15AY D=1.6 NETU 4M |
Type |
Exposed-lead model |
Material |
(Sheath) ASTM316L |
Temperature Range |
0 to +650 (in dry air) |
Monotaro ID |
46782057 |
Terminal Shape |
Y-type crimp terminal for M3.5 |
Protective Tube Length L (cm) |
15 cm |
Lead Wire |
Heat resistant, all glass wool coated stainless steel outer shield (0 to + 150 ° C, 7 / 0.3, 0.5SQ, finished outer shape 2.8 x 4.6, sleeve part 0 to + 100 ° C) |
Wire Type |
K |
Method |
Non-ground type |
JIS Class |
2 (0.75 class) |
Lead Wire Length (mm) |
4 m |
Protective Tube Diameter D (Φmm) |
Φ1.6 mm |
Country of Origin |
JAPAN |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
