| Type | Terminal type: screwless |
| Model No | ABL-L04PA-UY |

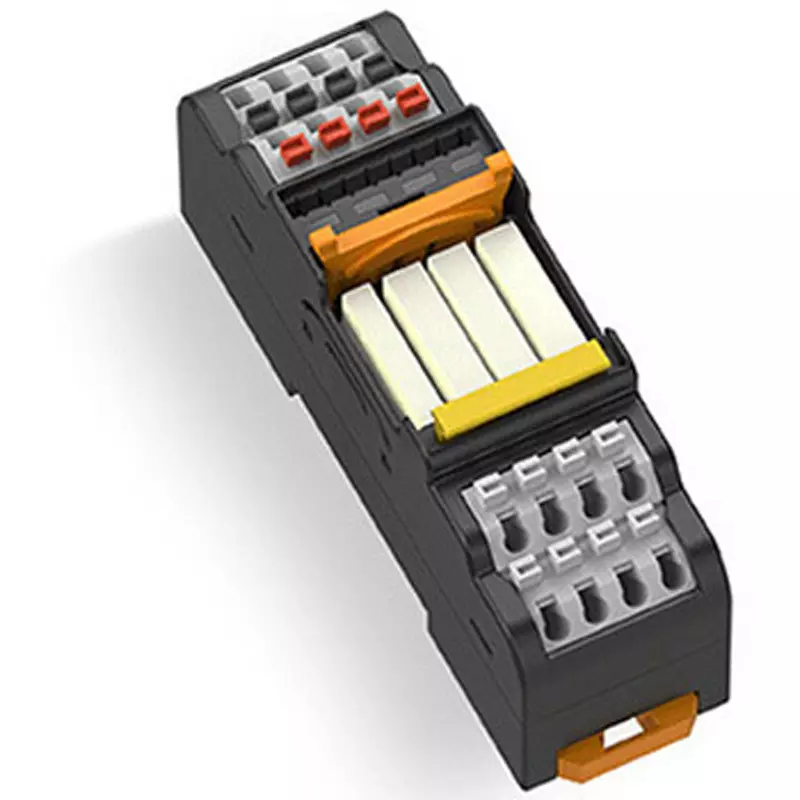

| Type of Product | Relay Terminal Block |
| Material | Terminal block: PA66, Conductive plate: Brass, Case & base: PPS |
Type |
Terminal type: screwless |
Model No |
ABL-L04PA-UY |
Type of Product |
Relay Terminal Block |
Material |
Terminal block: PA66, Conductive plate: Brass, Case & base: PPS |
Current Consumption |
≦8mA |
Insulation Resistance |
≧1000MΩ (500VDC megger) |

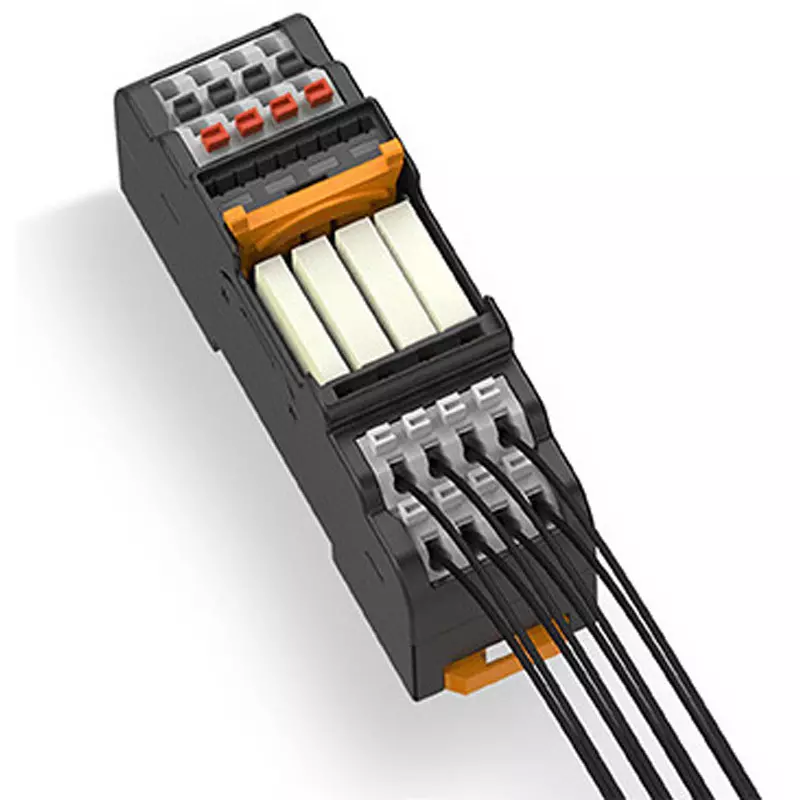

Suitable Wire |
Solid wire: Φ0.6 to Φ1.25 mm (60°C only), Stranded wire: AWG22 to 16 (0.3 to 1.25 mm2) (60°C only) |
Withstand Voltage |
Between coil and contact: 3000VAC to 50/60Hz for 1 minute, Between same polarity contacts: 1000VAC to 50/60Hz for 1 minute |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
24DC±10% |
Monotaro ID |
14402346 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Score |
Relay: 4 points |
Protection Class |
IP20 (IEC standard) |
Terminal Spacing |
5 mm |
Name of Manufacturer/Packer/Importer |
Autonics |
Mass (g) |
Approximately 125 (approximately 72 |
Operation Ambient Temperature (°C) |
Environmental resistance: -15 to 55, storage: -25 to 65 |
Included Components |
1 jumper bar |
Ambient Humidity to Use |
Environmental resistance: 35-85%RH, during storage: 35-85%RH |
Current (A) (50/60Hz) |
250VAC to 50/60Hz 3, 30VDC 3 (rated load voltage and current) |
Indicator Lamp |
Operation indicator: Blue LED |
Suitable Relay |
APAN3124 [MATSUSHITA(Panasonic)] |
