| Model No | EA940DM-114A |
| Type of Product | Terminal Block |
| Insulation Resistance | DC500V, 100MΩ or more |
| Monotaro ID | 64643925 |
Model No |
EA940DM-114A |
Type of Product |
Terminal Block |
Insulation Resistance |
DC500V, 100MΩ or more |
Monotaro ID |
64643925 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Rating |
DC300-10A |
Specifications |
Overall contact resistance (initial value): 30 mΩ or less Main insulation material: Nylon 66 (UL94V-0) Main insulation material (button): Modified PPE (UL94V-0) |
Terminal Spacing |
5.08 |
Name of Manufacturer/Packer/Importer |
Esco |

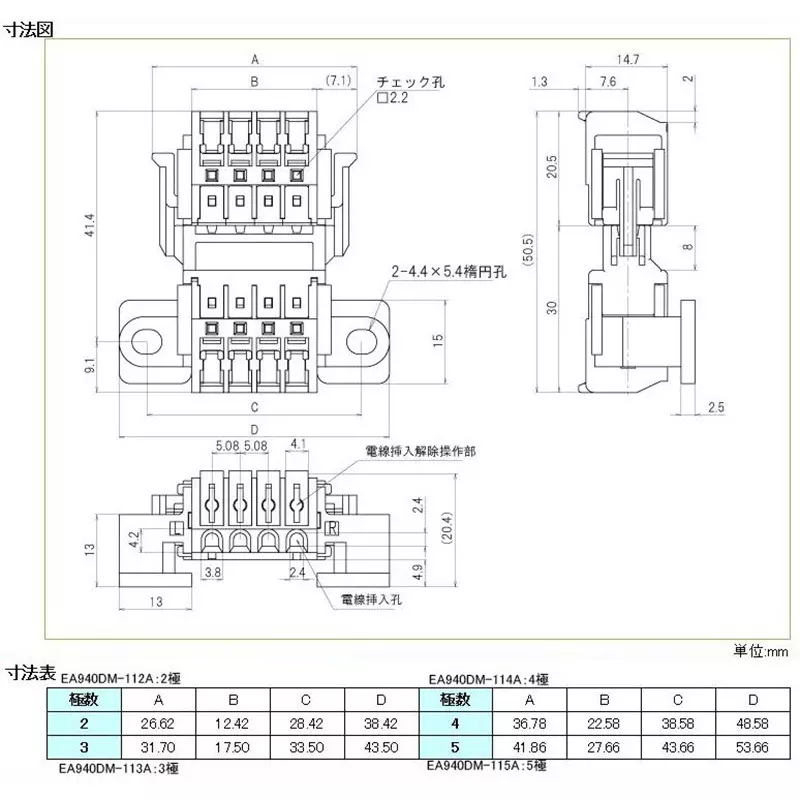

Dimension (mm) |
A: 36.78, B: 22.58, C: 38.58, D: 48.58, Height: 50.5 |
Withstand voltage (V) |
AC2000 (1 minute) |
Suitable Cable Range |
Single wire: Φ0.4mm to 1.6mm (AWG26 to 14), Twisted wire: 0.2mm2 to 2.0mm2 (AWG24 to 14), Wire diameter Φ0.18mm or more |
Standard Stripping Length |
10 |
