| Model No | MTS-2010-06TB |
| Color | Resin part: Black |
| No. Of Pin | 6 |

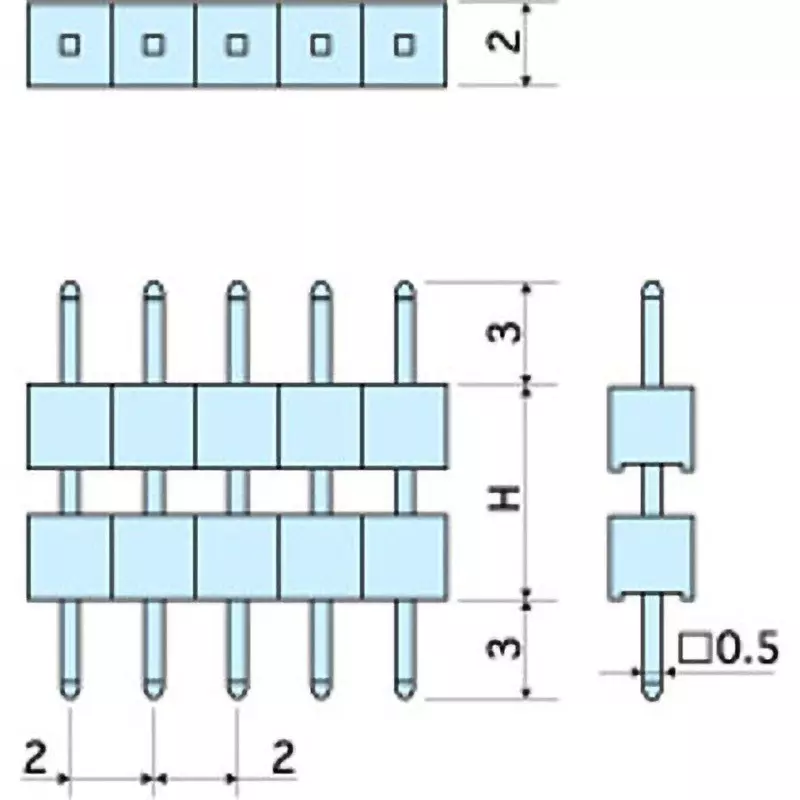

| Type of Product | Stacked Terminal |
Model No |
MTS-2010-06TB |
Color |
Resin part: Black |
No. Of Pin |
6 |
Type of Product |
Stacked Terminal |
Material |
PBT (Glass Content 30%) |
Withstand Voltage |
600 VAC for 1 minute |
RoHS Directive |
Correspondence |
Monotaro ID |
57325355 |
Contact Material |
Brass |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Pack of |
200 Pcs |
Surface Treatment |
Contact: Gold plated (nickel base) |
Name of Manufacturer/Packer/Importer |
Hirosugi Instruments Co., Ltd. |
Operating Temperature Range |
-40 to +85 ℃ |
Insulation Resistance (MOhm) |
1000 mΩ Min |
Contact Resistance (ohm) |
30 mΩ Max |
Current Capacity |
1 Amp |
Dimension H (Φmm) |
10 |
UL standard |
UL94V-0 (body resin part) |
Thermal Deformation Temperature |
1.82 MPa…200 ℃ |
