Ships within 25 days
View
View
View
View

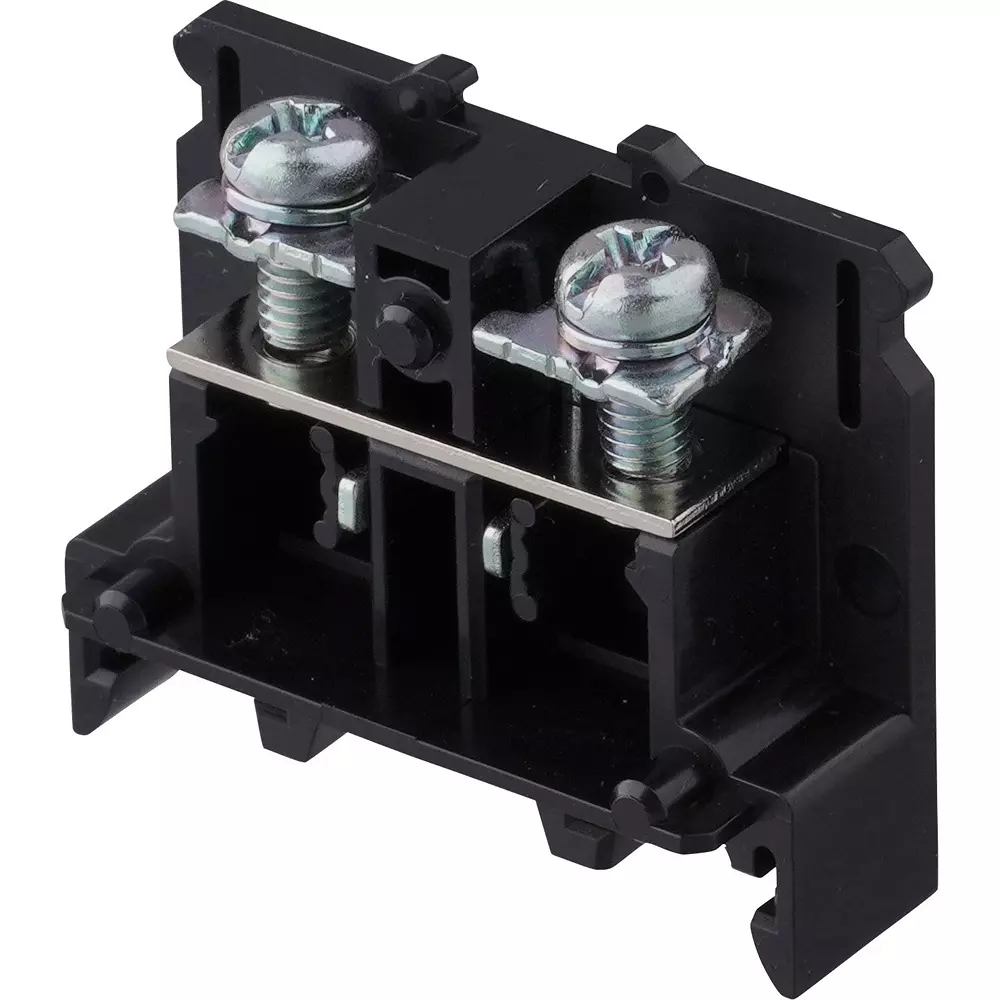

| Model No | BNH15LWT |
| Type of Product | Bnh-W Series Pan Block Terminal Tdt Touchdown Structure Type |
| Material | Body / modified PPE resin, conductive bracket / brass (nickel plating), terminal screw / steel (zinc plating chromate) |
| Relative Humidity | 45 to 85% (with no condensation) |
Model No |
BNH15LWT |
Type of Product |
Bnh-W Series Pan Block Terminal Tdt Touchdown Structure Type |
Material |
Body / modified PPE resin, conductive bracket / brass (nickel plating), terminal screw / steel (zinc plating chromate) |
Relative Humidity |
45 to 85% (with no condensation) |
Monotaro ID |
2487676 |
Terminal Screw |
M4 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN rail |
Terminal Shape |
Touch-down type |
Storage Temperature Range |
-25 to +70℃ (no icing) |
Rated Insulation Voltage (V) |
(JIS)AC/DC630, (UL/CSA)600, (EN)660 |
Terminal Spacing |
10.5 mm |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Operation Ambient Temperature (°C) |
-25 to +55 (no icing) |
Withstand voltage (V / min) |
AC2500 |
Terminal Connection Type |
screw |
Insulation_Resistance (MΩ) |
over 100 |
Current Rating, IEC (A) |
22 |
Current Rating, UL (A) |
30 |
Rating of Suitable Cable |
3.5 mm² |
Current Rating, JIS (A) |
30 |
Recommended Tightening Torque (N.m) |
1.4 - 2.0 |
