| Model No | TS-625 6P |
| Type of Product | Terminal Block |
| Material | Insulation base: modified PPE resin (black) <br> Terminal screw: carbon steel (galvanized, chromate treated) <br> Terminal metal fittings: brass <br> Terminal cover: vinyl chloride plate (transparent) |
| RoHS Directive | Correspondence |
Model No |
TS-625 6P |
Type of Product |
Terminal Block |
Material |
Insulation base: modified PPE resin (black) <br> Terminal screw: carbon steel (galvanized, chromate treated) <br> Terminal metal fittings: brass <br> Terminal cover: vinyl chloride plate (transparent) |
RoHS Directive |
Correspondence |
Monotaro ID |
8562793 |
No. of Pole |
6 |
Terminal Screw |
M4 x 8 self-up type |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |

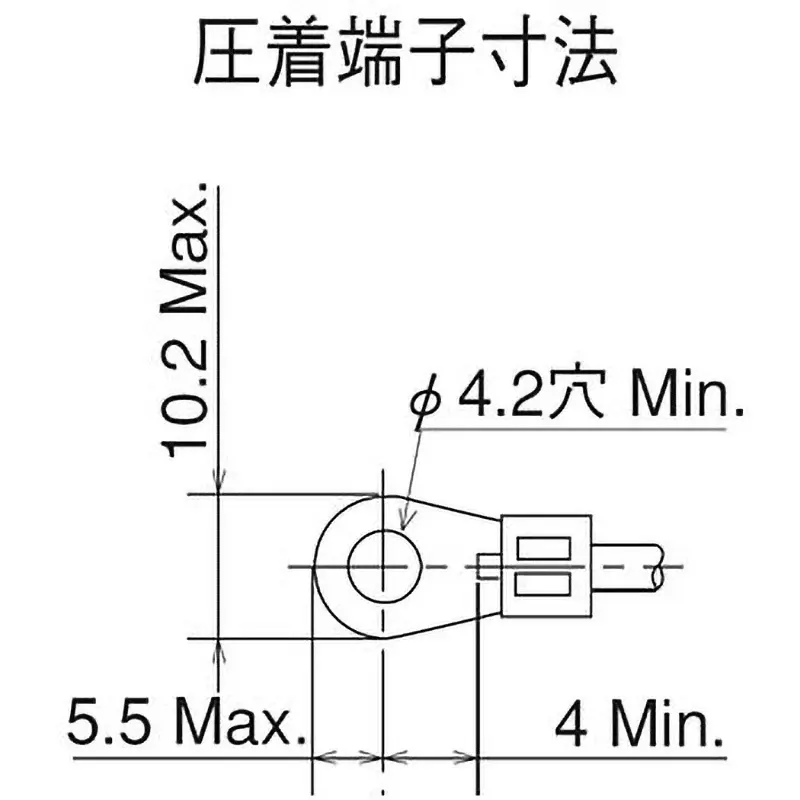

Compatible Cable |
5.5 mm² |
Rated Insulation Voltage (V) |
660 |
Terminal Spacing |
12.5 mm |
Name of Manufacturer/Packer/Importer |
Kimura Electric Co., Ltd. |
Mass (g) |
59 |
Operating Humidity Range |
45% to 85% RH (with no icing or condensation) |
Operating Temperature Range |
-10 to 50℃ |
Dimension B (Φmm) |
94 |
Insulation Resistance (MOhm) |
During each other charging, between the grounding part of the charging part: DC500V Mega 500 or more |
Withstand voltage (V / min) |
During each other charging, between charging parts ground: AC2000 No abnormality (tS-171: AC2500 no abnormality) |
Dimension A (Φmm) |
84 |
Rated Carrying Current (A) |
30 |
Conformed Standard |
NECA4201 terminal block |
Recommended Screw Tightening Torque (Nm (kgfcm)) |
1.4 to 1.8 |
