| Model No | TS-125P 8P |
| Type of Product | Terminal Block |
| Material | Insulation base: PBT resin (black) <br> Terminal screw: Carbon steel (nickel plating) <br> Terminal bracket: Brass Terminal cover: Polycarbonate (transparent) |
| RoHS Directive | Correspondence |
Model No |
TS-125P 8P |
Type of Product |
Terminal Block |
Material |
Insulation base: PBT resin (black) <br> Terminal screw: Carbon steel (nickel plating) <br> Terminal bracket: Brass Terminal cover: Polycarbonate (transparent) |
RoHS Directive |
Correspondence |
Monotaro ID |
8562626 |
No. of Pole |
8 |
Terminal Screw |
M3 x 6 (Square self-up screw) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |

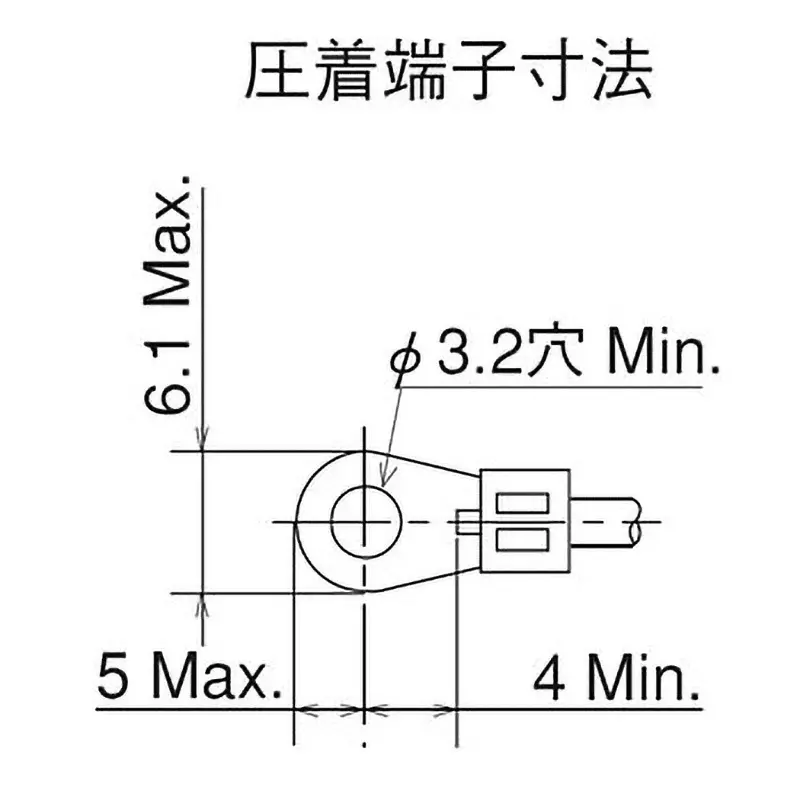

Compatible Cable |
1.25 mm² |
Rated Insulation Voltage (V) |
250 |
Terminal Spacing |
7.62 mm |
Name of Manufacturer/Packer/Importer |
Kimura Electric Co., Ltd. |
Mass (g) |
2.3 x P (number of poles) |
Operating Humidity Range |
45% to 85% RH (with no icing or condensation) |
Operating Temperature Range |
-30 to 80℃ |
Dimension B (Φmm) |
62.3 |
Insulation Resistance (MOhm) |
During each other charging, between the grounding part of the charging part: DC500V Mega 500 or more |
Withstand voltage (V / min) |
During each other charging, between charging parts ground: AC2000 No abnormality (tS-171: AC2500 no abnormality) |
Dimension A (Φmm) |
53.3 |
Rated Carrying Current (A) |
10 |
Conformed Standard |
JIS C 2811 Industrial terminal block |
Recommended Screw Tightening Torque (Nm (kgfcm)) |
0.6 to 0.9 |
Hardware |
For printed circuit boards |
