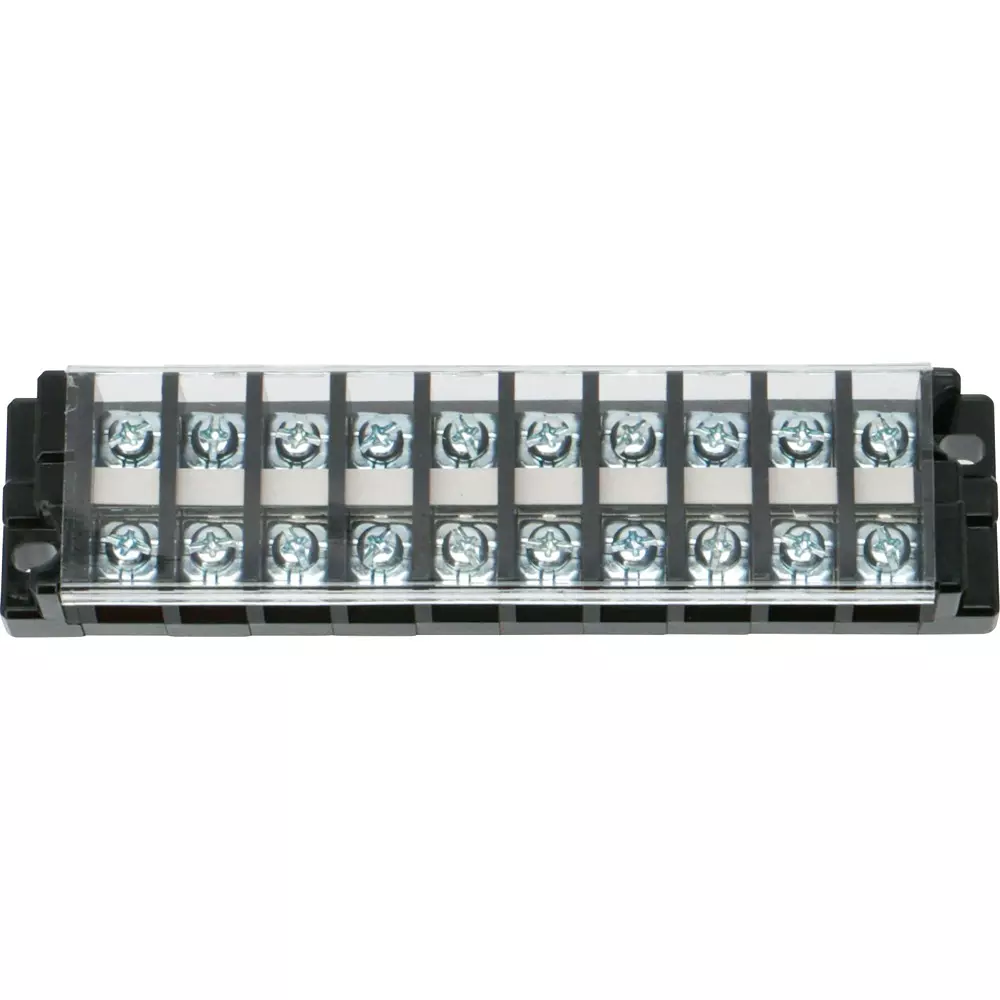

| Model No | T20-10PM |
| Type of Product | Barrier Terminal Strips (30A) |
| Material | [Terminal base] Phenol (black), [Cover] PC (transparent)/UL94-V0, [Conductive plate] Brass (nickel plating), [Terminal screw part] Iron (chromate), [Inscription seal] Fiber |

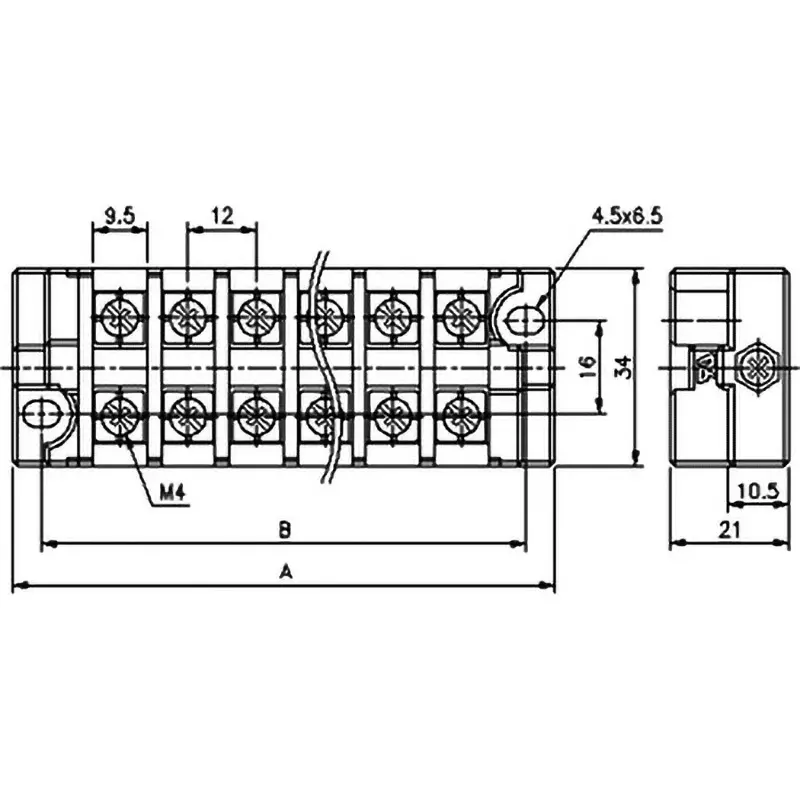

| Dimensions A (mm) | 143 |
Model No |
T20-10PM |
Type of Product |
Barrier Terminal Strips (30A) |
Material |
[Terminal base] Phenol (black), [Cover] PC (transparent)/UL94-V0, [Conductive plate] Brass (nickel plating), [Terminal screw part] Iron (chromate), [Inscription seal] Fiber |
Dimensions A (mm) |
143 |
Monotaro ID |
10793282 |
No. of Pole |
10P |
Terminal Screw |
M4 |
Dimensions B (mm) |
133 |
Country of Origin |
TAIWAN |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Rated Insulation Voltage (V) |
600 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Terminal Connection Type |
screw |
Maximum Current (A) |
1.25mm ² wires: 15, 2mm ² wires: 20, 3.5mm ² wires: 30 |
Withstand voltage (V) |
2500 |
