| Model No | T30-03PM |

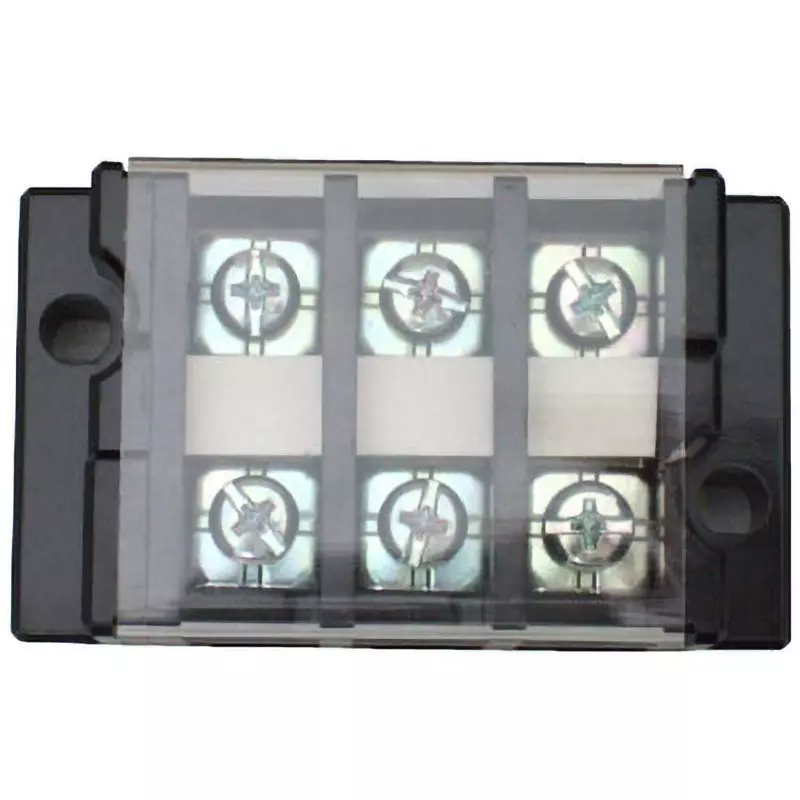

| Type of Product | Assembled Terminal Block (50A) |
| Material | [Terminal base] Phenol (black), [Cover] PC (transparent)/UL94-V0, [Conductive plate] Brass (nickel plating), [Terminal screw part] Iron (chromate), [Inscription seal] Fiber |
| Tightening Torque | 24kgf-cm |
Model No |
T30-03PM |
Type of Product |
Assembled Terminal Block (50A) |
Material |
[Terminal base] Phenol (black), [Cover] PC (transparent)/UL94-V0, [Conductive plate] Brass (nickel plating), [Terminal screw part] Iron (chromate), [Inscription seal] Fiber |
Tightening Torque |
24kgf-cm |

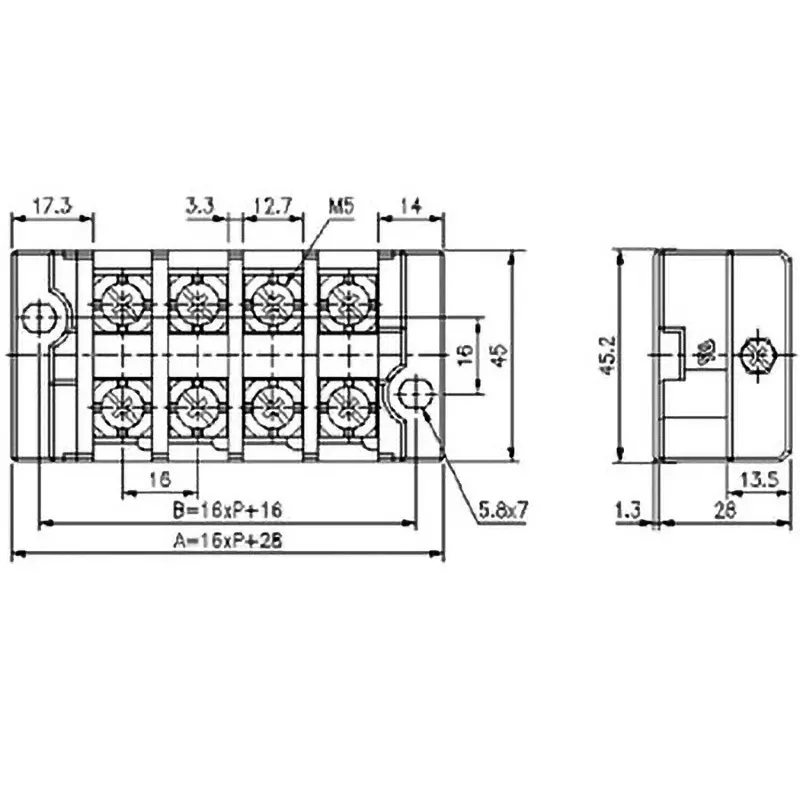

Dimensions A (mm) |
76 |
Monotaro ID |
10793334 |
No. of Pole |
3P |
Terminal Screw |
M5 |
Dimensions B (mm) |
64 |
Country of Origin |
TAIWAN |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Rated Insulation Voltage (V) |
600 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Terminal Connection Type |
screw |
Maximum Current (A) |
3.5mm <sup>2</sup> wires: 30, 5.5mm <sup>2</sup> wires: 40, 8mm <sup>2</sup> wires: 50 |
Withstand voltage (V) |
2500 |
