Ships within 25 days
View
View
View
View
| Model No | TBJ-102B4S |

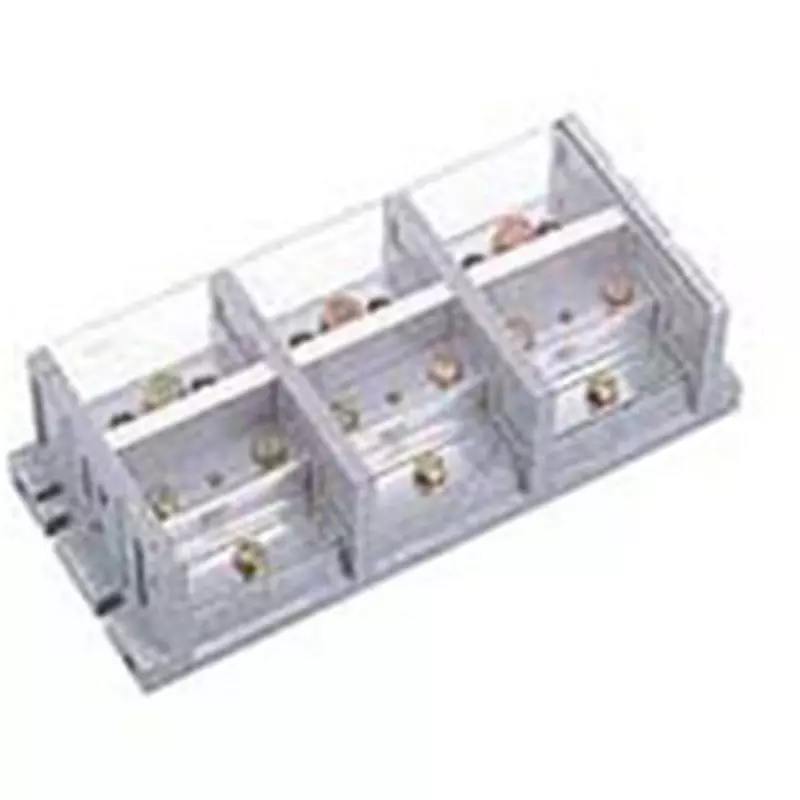

| Type of Product | TBJ Fixed Branch Terminal Block |
| Monotaro ID | 45149072 |
| No. of Pole | 2-Pole |
Model No |
TBJ-102B4S |
Type of Product |
TBJ Fixed Branch Terminal Block |
Monotaro ID |
45149072 |
No. of Pole |
2-Pole |
Terminal Screw |
Primary Side/Main/Feed: M8, Secondary Side/Branch: M5 (Small pan) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Specifications |
IEC rail mounting: Not possible |
Rated Insulation Voltage (V) |
600 |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Operation Ambient Temperature (°C) |
-20 to 90 |
Terminal Connection Type |
screw |
Rating of Suitable Cable |
(Primary side) Main trunk: 38 mm <sup>2</sup> / Feed: 38 mm <sup>2</sup> (Secondary side) Electric wire (mm <sup>2</sup> )xnumber of branches: 8x4 |
Base Material |
Unsaturated polyester resin |
Rated Carrying Current (A) |
130 |
Structure |
Combination type |
Heat Resistance Class |
A kind of heat-resistant terminal block |
No. of Branches |
4 |
