| Color | Dark gray |

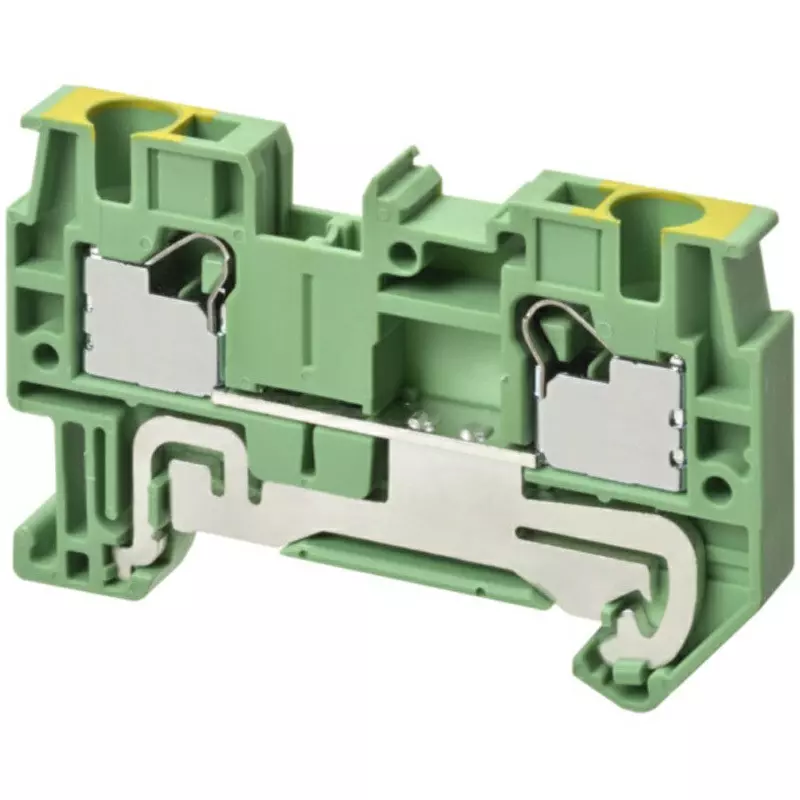

| Type of Product | Din Rail Terminal Block |
| Suitable For | (Terminal plate) XW5E-P4.0-1.1-1, (Name plate) XW5Z-P4.0LB or commercially available nameplate 9.5mm width and 0.5mm thickness (Short-circuit bar) XW5S-P4.0 -□ (□: Number of poles = 2, 3, 4, 5, 10) |
| Suitable Wire | 0.2 mm² - 6.0 mm², AWG24 - AWG10; (with ferrule) 0.12 mm² - 4.0 mm², AWG24 - AWG12 |
Color |
Dark gray |
Type of Product |
Din Rail Terminal Block |
Suitable For |
(Terminal plate) XW5E-P4.0-1.1-1, (Name plate) XW5Z-P4.0LB or commercially available nameplate 9.5mm width and 0.5mm thickness (Short-circuit bar) XW5S-P4.0 -□ (□: Number of poles = 2, 3, 4, 5, 10) |
Suitable Wire |
0.2 mm² - 6.0 mm², AWG24 - AWG10; (with ferrule) 0.12 mm² - 4.0 mm², AWG24 - AWG12 |
Rated Voltage (V) |
(IEC)800 |
Monotaro ID |
24408484 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
No. of Tiers |
1 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Dimension (mm) |
6.2x56.1x35.25 |
Mass (g) |
About 11.7 |
Applicable Standard |
cULus(UL 1059)、IEC 60947-7-2 |
Operating Humidity Range |
5 to 95%RH |
Operating Temperature Range |
-40 to 55℃ |
Manufacturer Part Number |
XW5G-P4.0-1.1-1 |
Vibration |
10 ~ 150Hz Acceleration 50 m/s² 3 directions 80min each |
Insertion / Removal Durability (Times) |
50 |
Shock |
500 m/s² 11ms 6 direction each 5 times |
