| Color | Dark gray |
| Type of Product | Din Rail Terminal Block |
| Rated Current (A) | 【IEC】17.5/1.5mm²(SOL)、13.5/1.0mm²(STR) 【UL】(UG)D：15(SOL)、10(STR)/10/5 |
| Suitable Wire | 0.08 mm² - 1.5 mm², AWG28 - AWG14; (with ferrule) 0.14 mm² - 1.0 mm², AWG26 - AWG18 |
Color |
Dark gray |
Type of Product |

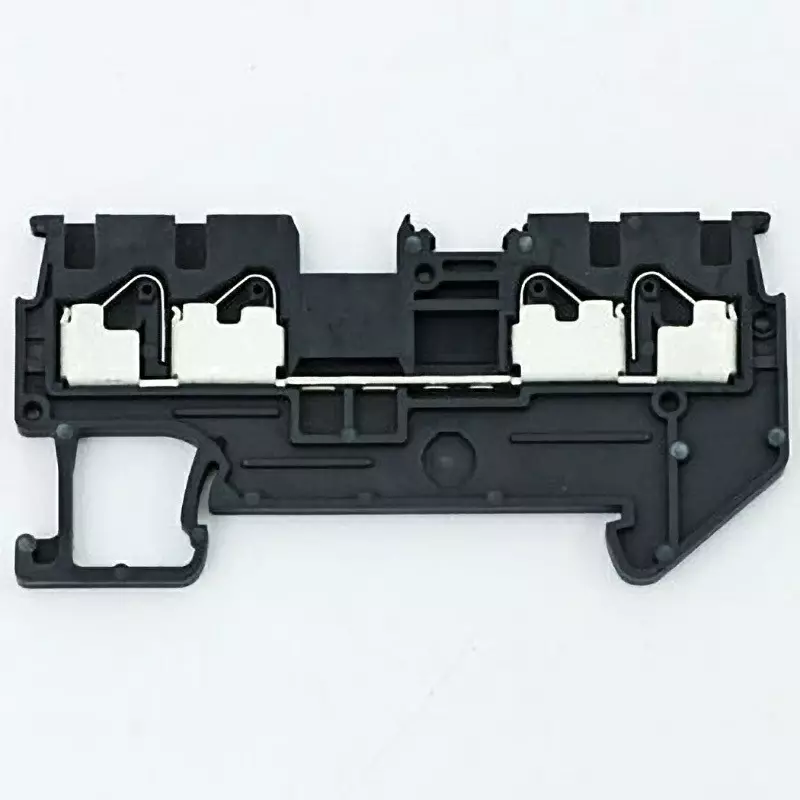

Din Rail Terminal Block |
Rated Current (A) |
【IEC】17.5/1.5mm²(SOL)、13.5/1.0mm²(STR) 【UL】(UG)D：15(SOL)、10(STR)/10/5 |
Suitable Wire |
0.08 mm² - 1.5 mm², AWG28 - AWG14; (with ferrule) 0.14 mm² - 1.0 mm², AWG26 - AWG18 |
Withstand Voltage |
AC1890V 1min (Leakage current 1mA or less) |
Rated Voltage (V) |
【IEC】500 【UL】(UG)D：51 to 150/151 to 300/301 to 600 |
Monotaro ID |
24409385 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
No. of Tiers |
1 |
Vibration Resistance |
10 to 150Hz Acceleration 50 m/s² 3 directions 80min each |
Shock Resistance |
500 m/s² 11ms 6 direction each 5 times |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Dimension (mm) |
3.5x63.2x30.5 |
Mass (g) |
About 4.8 |
Applicable Standard |
cULus(UL 1059)、IEC 60947-7-1 |
Operating Humidity Range |
5 to 95%RH |
Operating Temperature Range |
-40 to 55℃ |
Manufacturer Part Number |
XW5T-P1.5-2.2-1 |
Connection |
2：2 |
Insertion / Removal Durability (Times) |
50 |
Corresponding Name Plate |
Type XW5Z-P1.5LB □ or commercially available inscription paper 9.5mm width, 0.5mm thickness |
Corresponding Short Circuit Bar |
Type XW5S-P1.5- □ (□: Number of poles = 2, 3, 4, 5, 10) |
Suitable Tools |
XW4Z-00B |
End Plate |
Type XW5E-P1.5-2.2-1 |
