Ships within 19 days
Model No
View
View
View
View

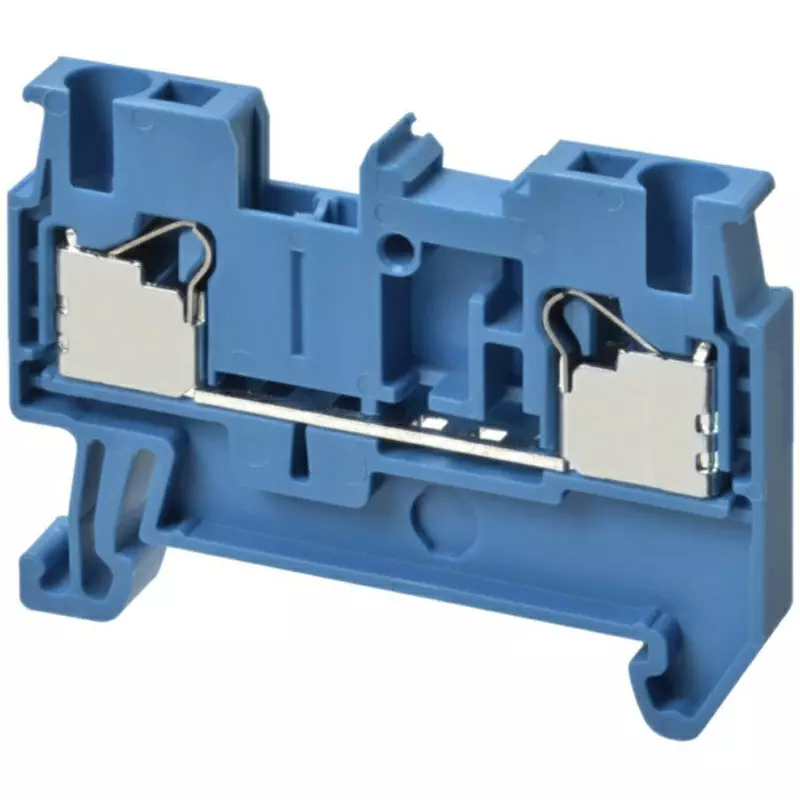

| Model No | XW5T-P2.5-1.1-1BL |
| Color | Blue |
| Type of Product | Din Rail Terminal Block |
| Rated Current (A) | 【IEC】24/2.5mm²(SOL)、17.5/1.5mm²(STR) 【UL】(UG)B、C：20/AWG12(SOL)、15/AWG14(STR) |
Model No |
XW5T-P2.5-1.1-1BL |
Color |
Blue |
Type of Product |
Din Rail Terminal Block |
Rated Current (A) |
【IEC】24/2.5mm²(SOL)、17.5/1.5mm²(STR) 【UL】(UG)B、C：20/AWG12(SOL)、15/AWG14(STR) |
Suitable Wire |
0.14 mm² - 4.0 mm², AWG26 - AWG12; (with ferrule) 0.14 mm² - 2.5 mm², AWG26 - AWG14 |
Withstand Voltage |
AC2000V 1min (leakage current 1mA or less) |
Rated Voltage (V) |
【IEC】800 【UL】(UG)B、C：600 |
Monotaro ID |
24409412 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
No. of Tiers |
1 |
Vibration Resistance |
10 to 150Hz Acceleration 50 m/s² 3 directions 80min each |
Shock Resistance |
500 m/s² 11ms 6 direction each 5 times |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Dimension (mm) |
5.2x48.8x35.25 |
Mass (g) |
About 6.3 |
Applicable Standard |
cULus(UL 1059)、IEC 60947-7-1 |
Operating Humidity Range |
5 to 95%RH |
Operating Temperature Range |
-40 to 55℃ |
Manufacturer Part Number |
XW5T-P2.5-1.1-1BL |
Connection |
1：1 |
Insertion / Removal Durability (Times) |
50 |
Corresponding Name Plate |
Type XW5Z-P2.5LB □ or commercially available inscription paper 9.5mm width, 0.5mm thickness |
Corresponding Short Circuit Bar |
Type XW5S-P2.5- □ (□: Number of poles = 2, 3, 4, 5, 10) |
Suitable Tools |
XW4Z-00B |
End Plate |
Shape XW5E-P2.5-1.1-1 |
