| Type of Product | PCB Terminal Block |
| Part No | 64-3405-85 |
| Housing Material | PBT resin (UL94V-0) / green or polyamide resin (UL94V-0) / green |
| Standard | RoHS directive, UL standard (file No.E245101), VDE / IEC standard, CSA standard (pending) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
PCB Terminal Block |
Part No |
64-3405-85 |
Housing Material |
PBT resin (UL94V-0) / green or polyamide resin (UL94V-0) / green |
Standard |
RoHS directive, UL standard (file No.E245101), VDE / IEC standard, CSA standard (pending) |
Suitable Wire |
AWG28 to AWG16 |
Shape |
Connector terminal block |
Withstand Voltage |
AC2500V、1min |
Suitable Circuit Board Thickness (mm) |
1.6 |
Monotaro ID |
8595413 |
Tightening Torque (Nm) |
0.22 to 0.25 |
Length (mm) |
Wire stripping length: 7 ± 1 |
No. of Pole |
8-Pole |
Contact Material |
Contact: Copper alloy / nickel base tin plating (5μm) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Terminal Shape |
Board side terminal block (plug, straight terminal) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Manufacturer Part Number |
XW4A-08B1-V1 |

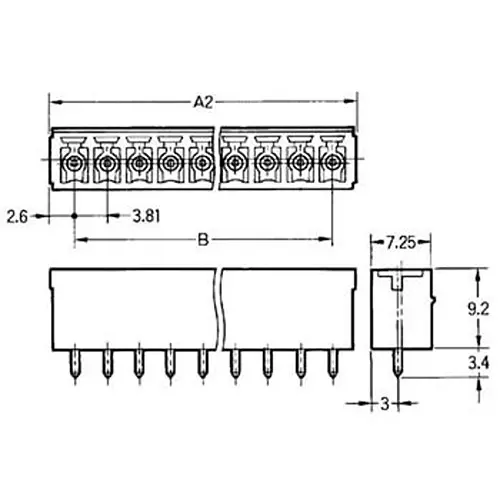

Dimension A1 |
31.3 mm |
Contact Spacing |
3.81 mm |
Operation Ambient Temperature (°C) |
-40 to +100 |
Dimension B (Φmm) |
φ26.67 mm |
Insulation Resistance (MOhm) |
100 or more (DC500V) |
Dimension A2 (mm) |
31.9 |
IEC / DIN, VDE Rated Voltage (V) |
160 |
IEC / DIN, VDE Rated Current (A) |
8 (ambient temperature 40 ° C or less) |
