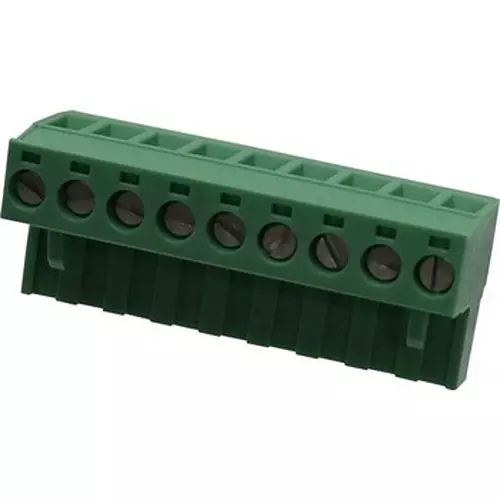

| Model No | XW4B-09C1-H1 |
| Type of Product | PCB Connector Terminal Block |
| Rated Current (A) | IEC/DIN, VDE: 12 (Ambient temperature of 40°C or less) UL/CSA: 10 |
| Part No | 64-3406-11 |
Model No |
XW4B-09C1-H1 |
Type of Product |
PCB Connector Terminal Block |
Rated Current (A) |
IEC/DIN, VDE: 12 (Ambient temperature of 40°C or less) UL/CSA: 10 |
Part No |
64-3406-11 |
Housing Material |
Polyamide resin (UL94V-0) / green |
Standard |
RoHS directive, UL standard (file No.E245101), IEC / DIN, VDE standard, UL / CSA standard |
Suitable Wire |
AWG24 to AWG14 |
Contact Spacing (mm) |
5.08 |
Shape |
Connector terminal block |
Withstand Voltage |
AC3000V, 1min |
Rated Voltage (V) |
IEC/DIN, VDE：AC250 UL/CSA：AC300 |
Suitable Circuit Board Thickness (mm) |
1.6 |
Monotaro ID |
39110355 |
Tightening Torque (Nm) |
0.5 to 0.6 |
Length (mm) |
Wire stripping length: 7 ± 1 |
No. of Pole |
9 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Pack of |
1 Pcs |
Terminal Shape |
Power terminal block (socket) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Dimension A1 |
45.7 mm |
Operation Ambient Temperature (°C) |
-40 to +100 |
Dimension B (Φmm) |
40.46 |
Insulation Resistance (MOhm) |
100 mohm or more (DC500 V) |
Dimension A2 (mm) |
47.7 |
