| Model No | TC200C06 |
| Type of Product | Screw Terminal Block |
| Material | Terminal base: Phenolic terminal Screw: Iron (zinc plated chromate treatment) <br> Conductive plate: Brass (nickel plating) <br> Name seal: Fiber cover: Polycarbonate |
| Relative Humidity | 45 to 85% |
Model No |
TC200C06 |
Type of Product |
Screw Terminal Block |
Material |
Terminal base: Phenolic terminal Screw: Iron (zinc plated chromate treatment) <br> Conductive plate: Brass (nickel plating) <br> Name seal: Fiber cover: Polycarbonate |
Relative Humidity |
45 to 85% |
Monotaro ID |
6946003 |
Tightening Torque (Nm) |
15/20 |
No. of Pole |
6P |
Terminal Screw |
M10x20 |
Country of Origin |
Thailand |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Compatible Cable |
100 mm² |
Rated Insulation Voltage (V) |
600 |

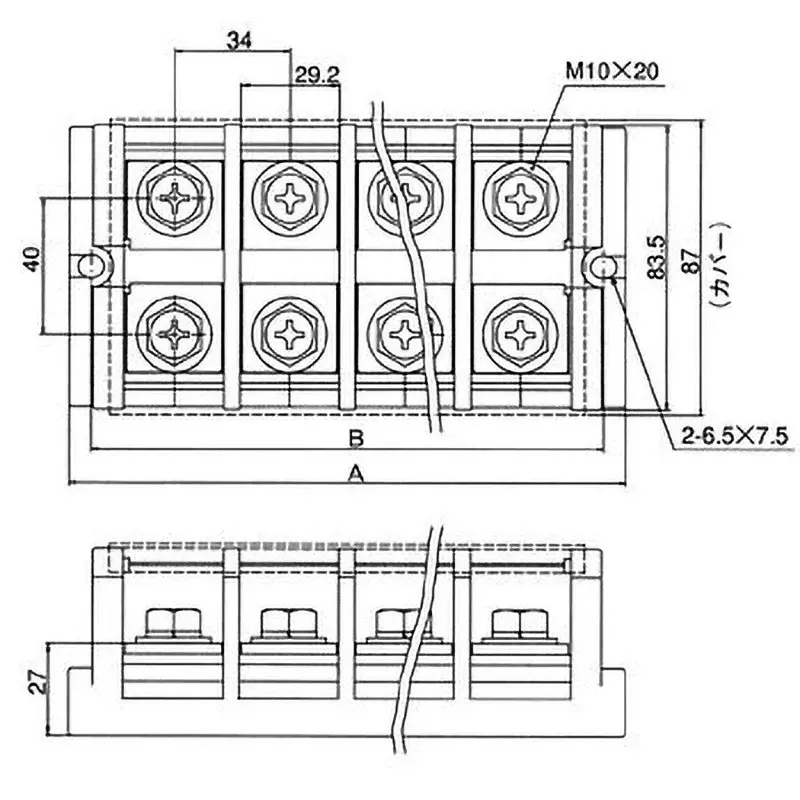

Terminal Spacing |
34 mm |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Mass (g) |
1225 |
Operation Ambient Temperature (°C) |
-20 to +55 (no freezing or condensation) |

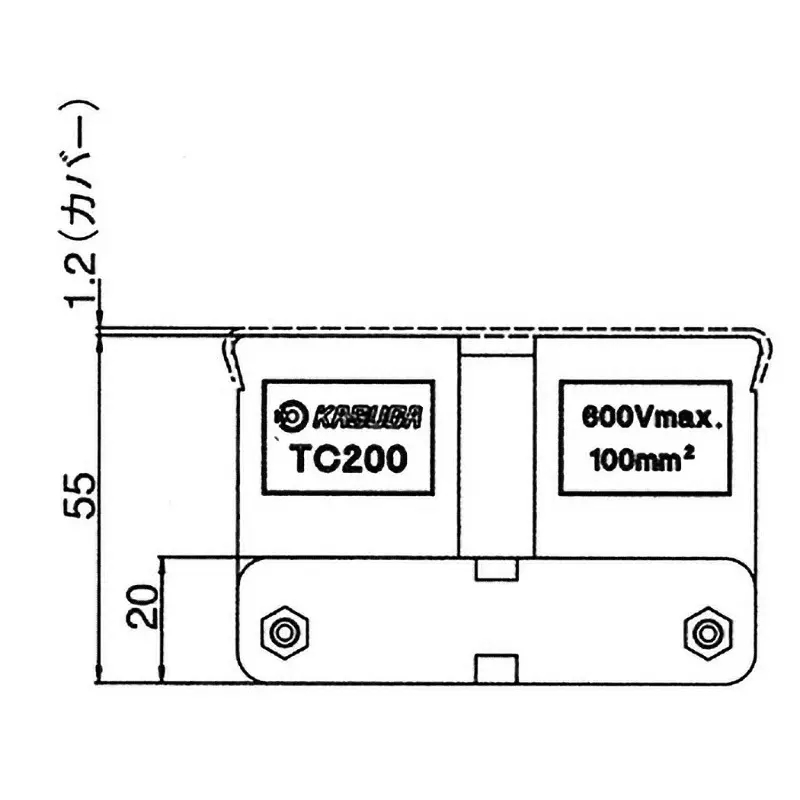

Dimension B (Φmm) |
219 |
Insulation Resistance (MOhm) |
100 or more (between live parts and between live parts and mounting metal plate) |
Dimension A (Φmm) |
232 |
Trusco Part No. |
441-6783 |
Connectable Wire (mm2) |
60, (80), 100 |
Maximum Current (A) |
60 mm²-175, (80 mm²-200), 100 mm²-240 |
Temperature Rise |
45°C or less (temperature rise value of conductive metal fittings) |
Rated Impulse Withstand Voltage (kV) |
6 |
Conformed Standard |
JIS C2811 |
