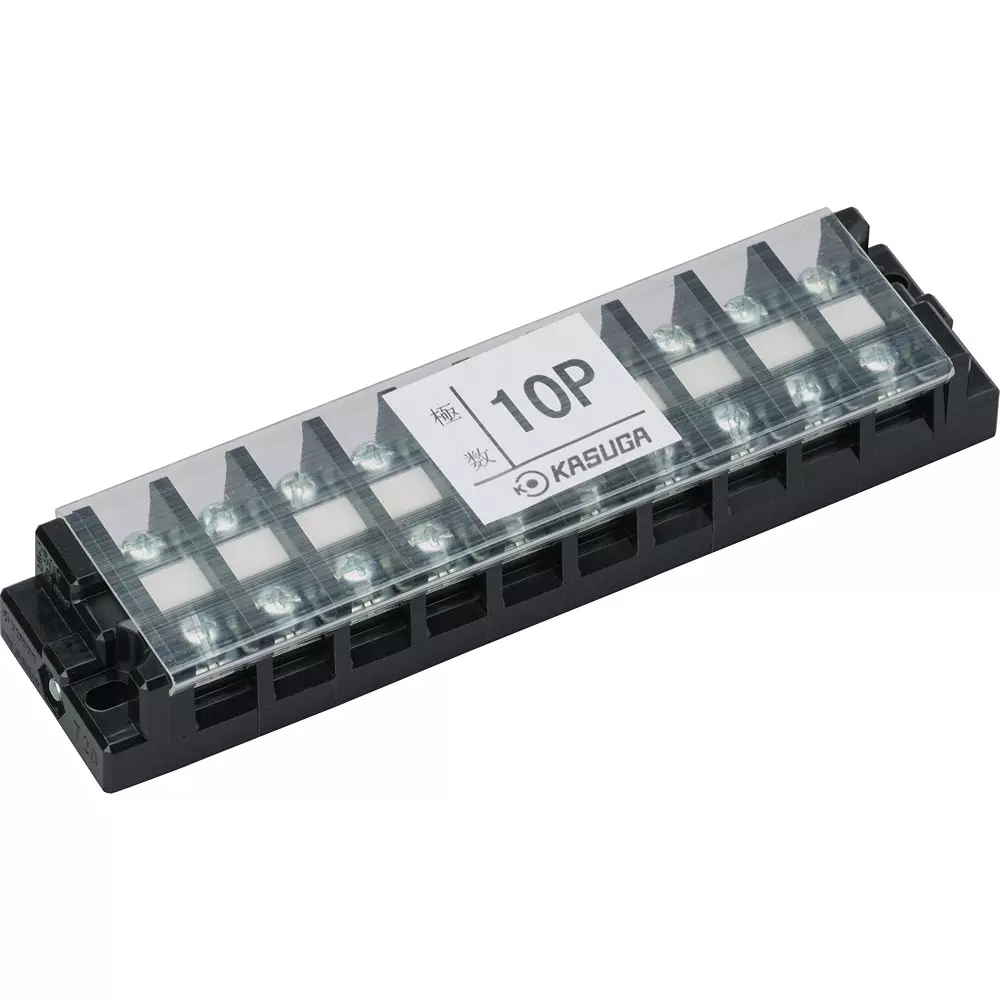

| Model No | T20C10 |
| Type of Product | Screw Terminal Block |
| Material | Terminal base: Phenolic terminal Screw: Iron (zinc plated chromate treatment) <br> Conductive plate: Brass (nickel plating) <br> Name seal: Fiber cover: Polycarbonate |
| Relative Humidity | 45 to 85% |
Model No |
T20C10 |
Type of Product |
Screw Terminal Block |
Material |
Terminal base: Phenolic terminal Screw: Iron (zinc plated chromate treatment) <br> Conductive plate: Brass (nickel plating) <br> Name seal: Fiber cover: Polycarbonate |
Relative Humidity |
45 to 85% |
Monotaro ID |
6945653 |
Tightening Torque (Nm) |
1.4 to 1.8 |
No. of Pole |
10P |
Terminal Screw |
M4x10 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Compatible Cable |
3.5 mm² |
Rated Insulation Voltage (V) |
250 |
Terminal Spacing |
12 mm |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Mass (g) |
150 |
Operation Ambient Temperature (°C) |
-20 to +55 (no freezing or condensation) |

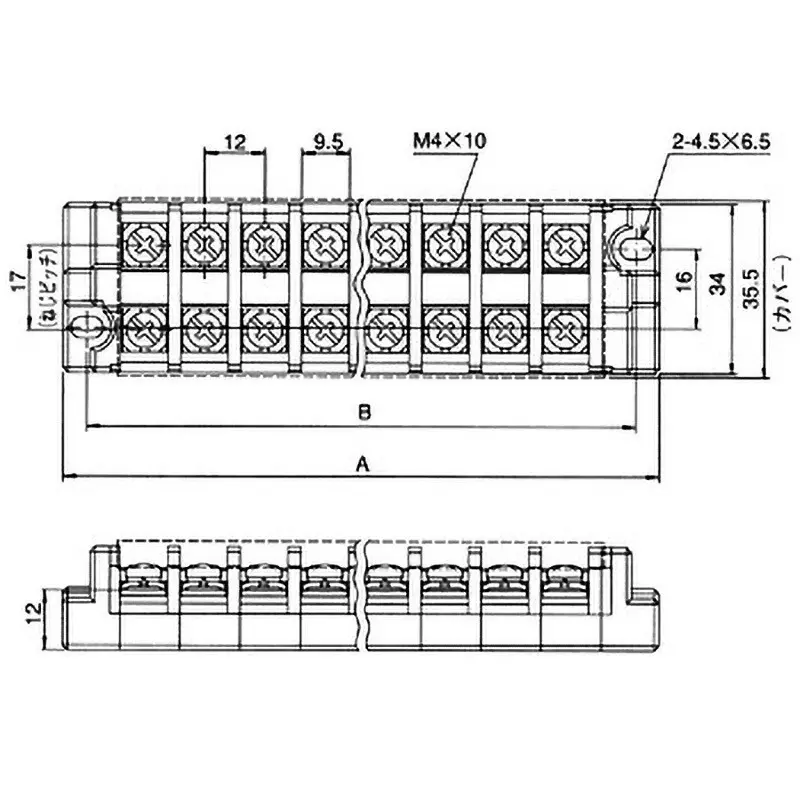

Dimension B (Φmm) |
133 |
Insulation Resistance (MOhm) |
100 or more (between live parts and between live parts and mounting metal plate) |
Dimension A (Φmm) |
143 |
Trusco Part No. |
441-6589 |
Connectable Wire (mm2) |
1.25, 2, * 3.5, * 5.5 (*: Crimp terminals are not JIS standard) |
Maximum Current (A) |
1.25 mm ² wire -15A, 2 mm ² electric wire -20A, 3.5 mm ² wire -30A (crimp terminal out of JIS standard), 5.5 mm ² wire -40A (crimp terminal out of JIS standard) |
Temperature Rise |
45°C or less (temperature rise value of conductive metal fittings) |
Rated Impulse Withstand Voltage (kV) |
6 |
Conformed Standard |
JIS C2811 |
