| Model No | TS100R |
| Type of Product | Stud Terminal Block |
| Part No | 64-1102-63 |
| Relative Humidity | 45 to 85% |
Model No |
TS100R |
Type of Product |
Stud Terminal Block |
Part No |
64-1102-63 |
Relative Humidity |
45 to 85% |
RoHS Directive |
Correspondence |
Monotaro ID |
40337866 |
Tightening Torque (Nm) |
8 to 10 |

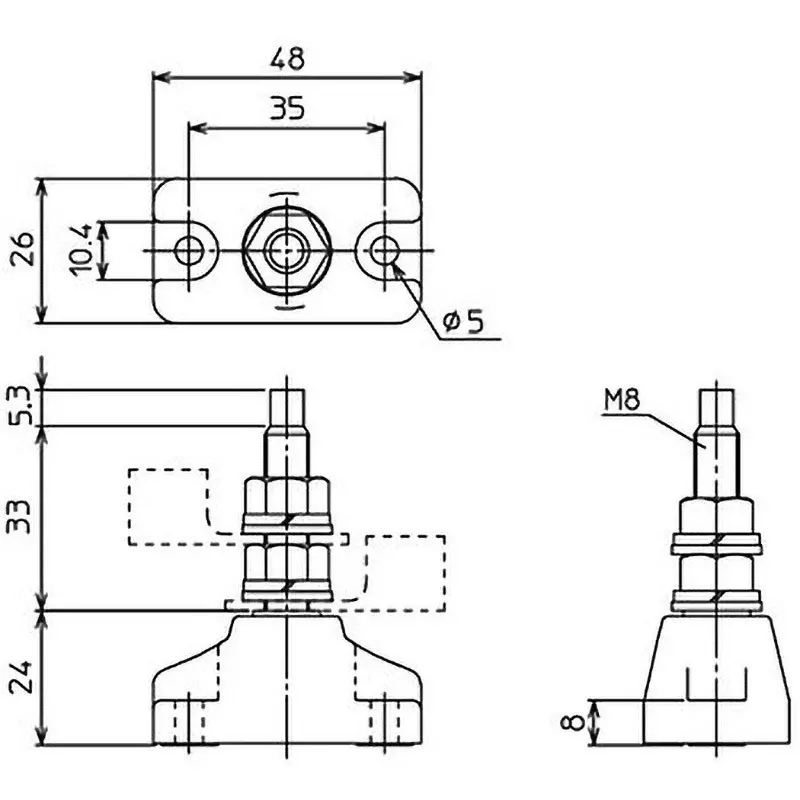

Terminal Screw |
M8x33 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |

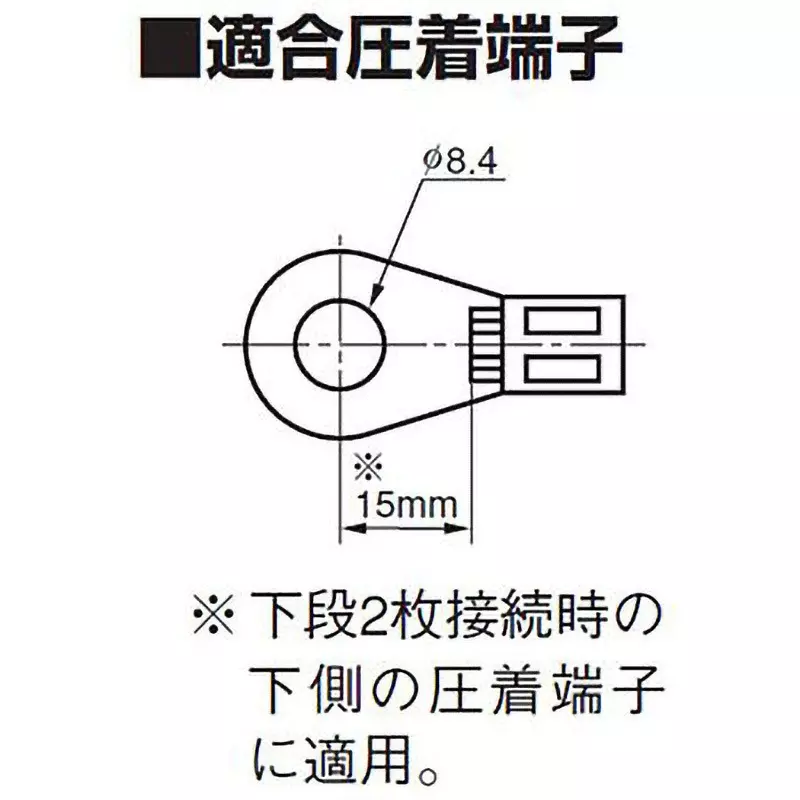

Compatible Cable |
38 mm² |
Rated Insulation Voltage (V) |
600 |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Mass (g) |
80 |
Operation Ambient Temperature (°C) |
-20 to +55 (no freezing or condensation) |
Insulation Resistance (MOhm) |
100 or more (between live parts and between live parts and mounting metal plate) |
Withstand voltage (V / min) |
2500 |
Terminal Connection Type |
screw |
Current Rating, JIS (A) |
130 |
Maximum Current (A) |
22 mm²/90, (30 mm²/110), 38 mm²/130, (50 mm²/130) |
Temperature Rise |
45°C or less (temperature rise value of conductive metal fittings) |
Rated Impulse Withstand Voltage (kV) |
6 |
Conformed Standard |
JIS C2811 |
