| Model No | TS200R |
| Type of Product | Stud Terminal Block |
| Part No | 64-1102-64 |
| Relative Humidity | 45 to 85% |
Model No |
TS200R |
Type of Product |
Stud Terminal Block |
Part No |
64-1102-64 |
Relative Humidity |
45 to 85% |
RoHS Directive |
Correspondence |
Monotaro ID |
40337875 |
Tightening Torque (Nm) |
15/20 |

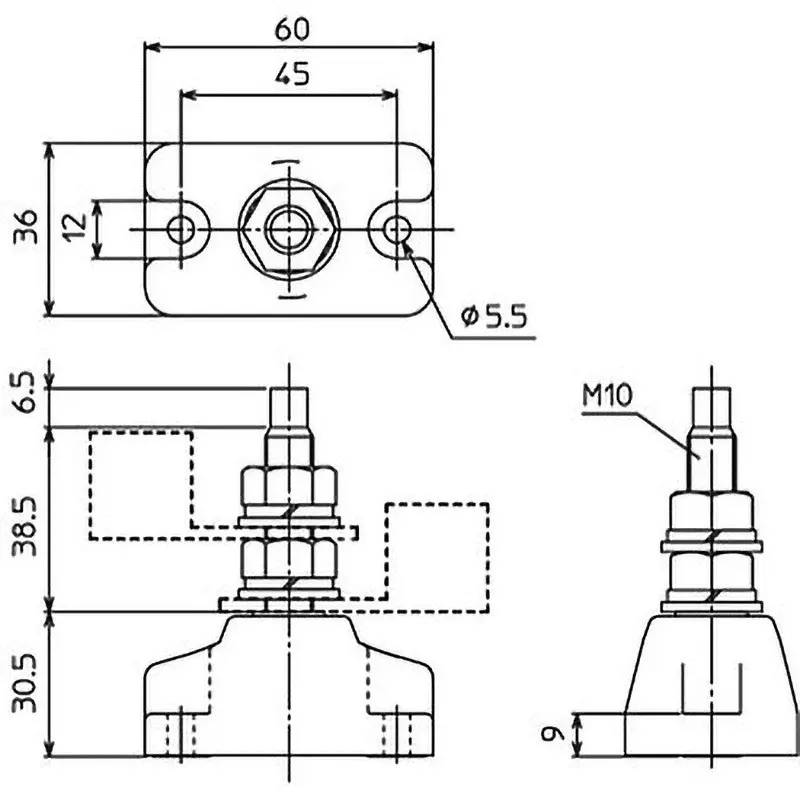

Terminal Screw |
M10x38.5 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |

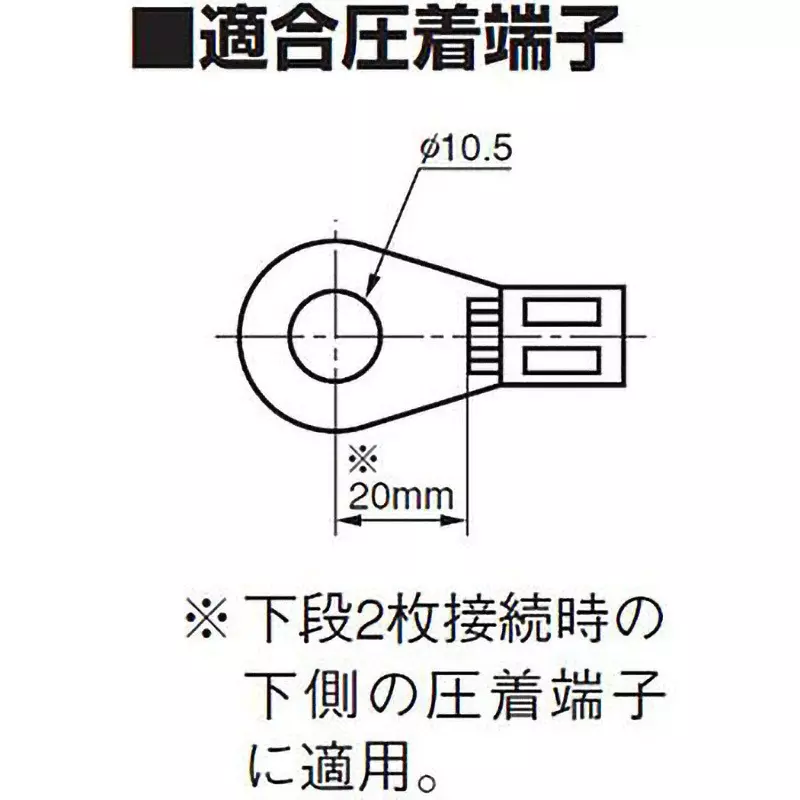

Compatible Cable |
100 mm² |
Rated Insulation Voltage (V) |
600 |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Mass (g) |
145 |
Operation Ambient Temperature (°C) |
-20 to +55 (no freezing or condensation) |
Insulation Resistance (MOhm) |
100 or more (between live parts and between live parts and mounting metal plate) |
Withstand voltage (V / min) |
2500 |
Terminal Connection Type |
screw |
Current Rating, JIS (A) |
240 |
Maximum Current (A) |
60 mm²/175, (80 mm²/210), 100 mm²/240 |
Temperature Rise |
45°C or less (temperature rise value of conductive metal fittings) |
Rated Impulse Withstand Voltage (kV) |
6 |
Conformed Standard |
JIS C2811 |
