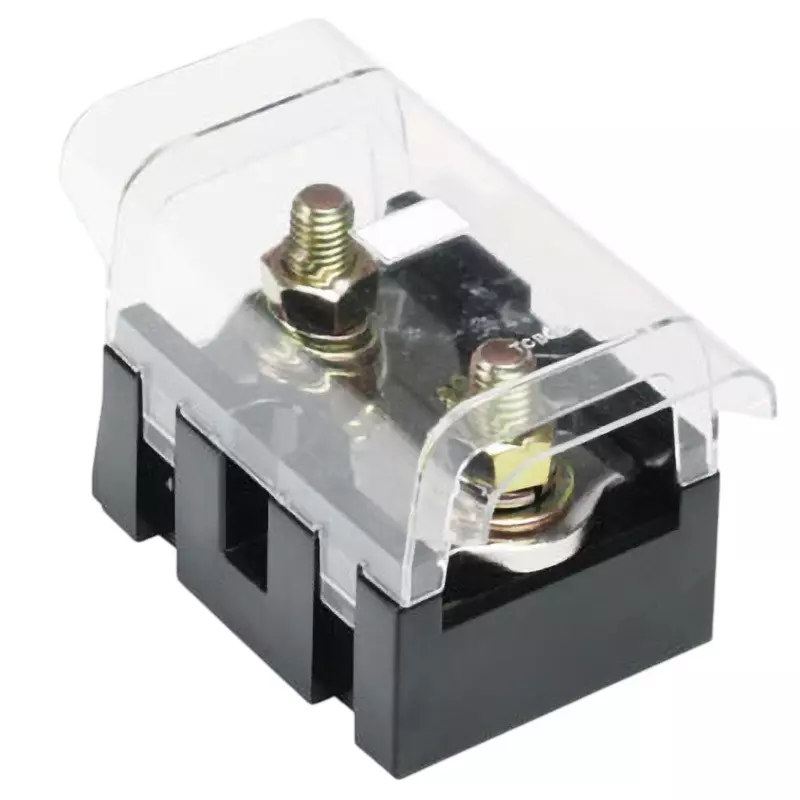

| Model No | TC450B |
| Type of Product | Screw Terminal Block |
| Material | Terminal base: Phenolic terminal Screw: Iron (zinc plated chromate treatment) <br> Conductive plate: Brass (nickel plating) <br> Name seal: Fiber cover: Polycarbonate |
| Part No | 64-1101-87 |
Model No |
TC450B |
Type of Product |
Screw Terminal Block |
Material |
Terminal base: Phenolic terminal Screw: Iron (zinc plated chromate treatment) <br> Conductive plate: Brass (nickel plating) <br> Name seal: Fiber cover: Polycarbonate |
Part No |
64-1101-87 |
Relative Humidity |
45 to 85% |
Monotaro ID |
6946021 |
Tightening Torque (Nm) |
25 to 35 |
No. of Pole |
1P |

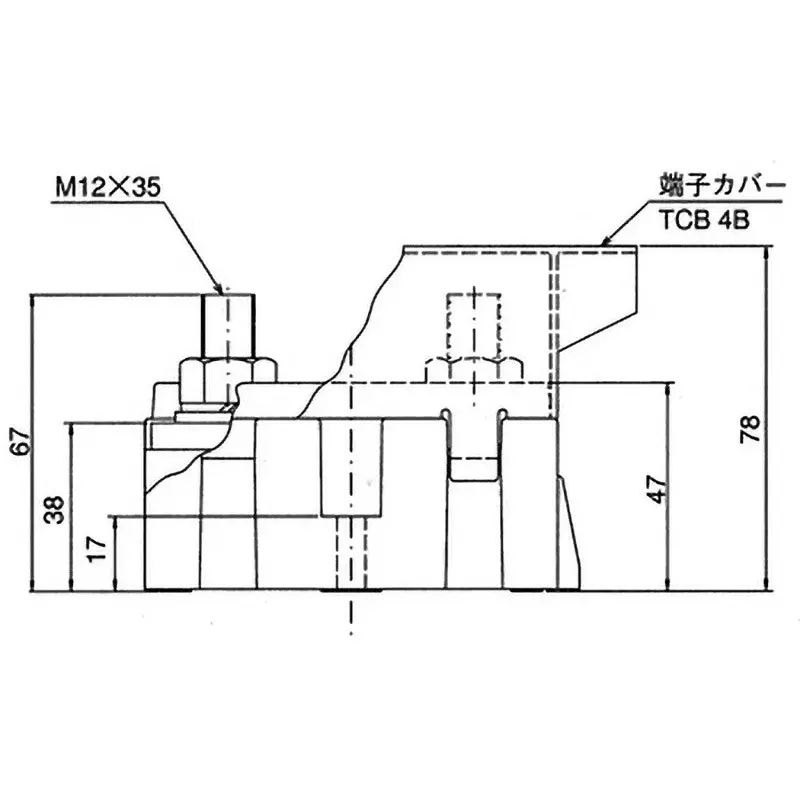

Terminal Screw |
M12x35 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Compatible Cable |
200/150x2 mm² |
Rated Insulation Voltage (V) |
600 |

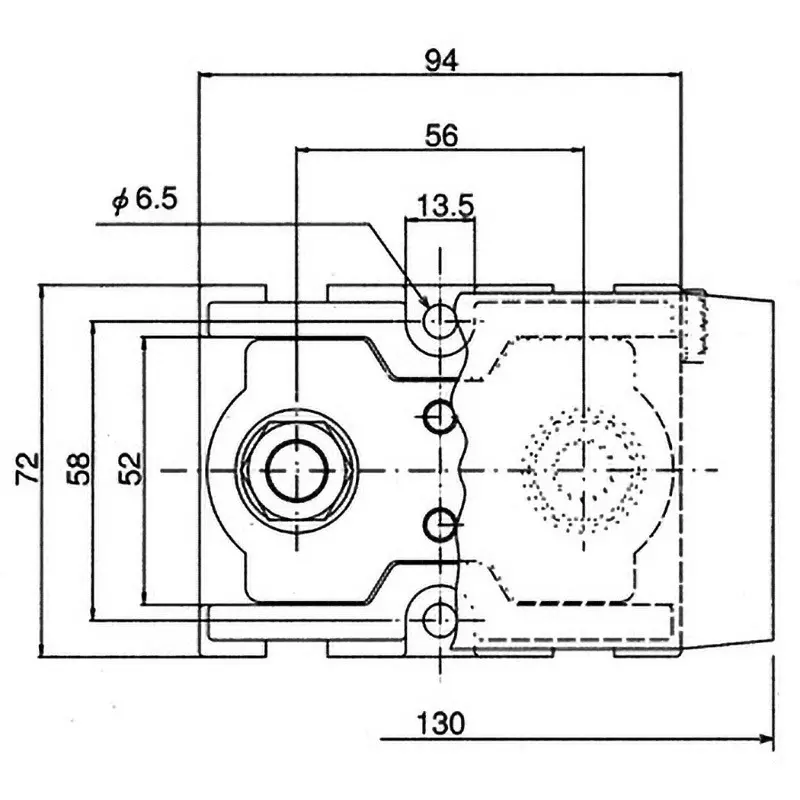

Terminal Spacing |
56 mm |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Mass (g) |
540 |
Operation Ambient Temperature (°C) |
-20 to +55 (no freezing or condensation) |
Insulation Resistance (MOhm) |
100 or more (between live parts and between live parts and mounting metal plate) |
Withstand voltage (V / min) |
2500 |
Terminal Connection Type |
screw |
Connectable Wire (mm2) |
150, 200, 250 (JIS standard external thread), 325 (JIS standard external thread) |
Maximum Current (A) |
<sup><sup><sup>150 mm 2 -310200 mm 2 -400250 mm 2 -430 (</sup></sup></sup> JIS standard outer thread) 325 mm ² -520 (outside JIS standard) |
Temperature Rise |
45°C or less (temperature rise value of conductive metal fittings) |
Rated Impulse Withstand Voltage (kV) |
6 |
Conformed Standard |
JIS C2811 |
