Ships within 25 days
View
View
View
View
| Model No | ML-40-S1AXS-5P |
| Type of Product | Terminal Block |
| RoHS Directive | Correspondence |
| Rated Voltage (V) | 250 |
Model No |
ML-40-S1AXS-5P |
Type of Product |
Terminal Block |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
250 |

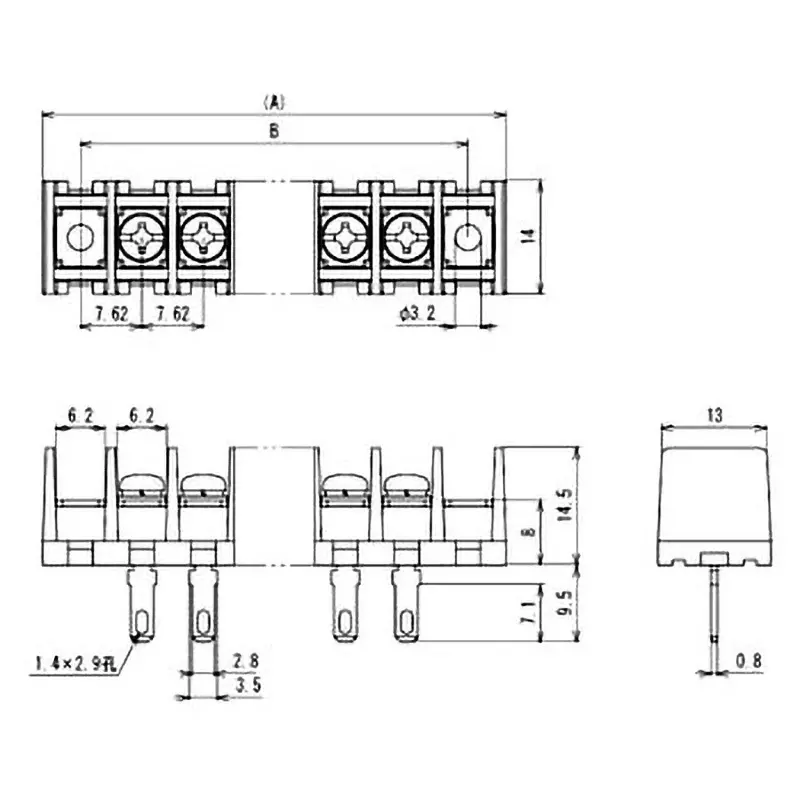

Dimensions A (mm) |
55.24 |
Monotaro ID |
39185316 |
No. of Pole |
5P |
Terminal Screw |
M3x6 |
Dimensions B (mm) |
45.72 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Solder / tab combination |
Pack of |
1 Pcs |
Terminal Spacing |
7.62 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Body Color |
B (black) |
Applicable Standard |
UL standard (compatible with field wiring), CSA standard (CSA certified products must be specified when ordering) |
Insulator Material |
P.B.T.(UL94V-0) |
Withstand voltage (V / min) |
AC2000 |
Terminal Connection Type |
screw |
Insulation_Resistance (MΩ) |
1000 or more (DC500V) |
Current Rating, UL (A) |
10 |
suitable crimping terminal |
110 tab terminal for soldering (t0.8mm) |
