| Type | SL terminal block for relay |
| Model No | ML-1700-A-10P |
| Type of Product | ML-1700 for Screwless Terminal Block Relay |
| Rated Voltage (V) | 300 |
Type |
SL terminal block for relay |
Model No |
ML-1700-A-10P |
Type of Product |
ML-1700 for Screwless Terminal Block Relay |
Rated Voltage (V) |
300 |

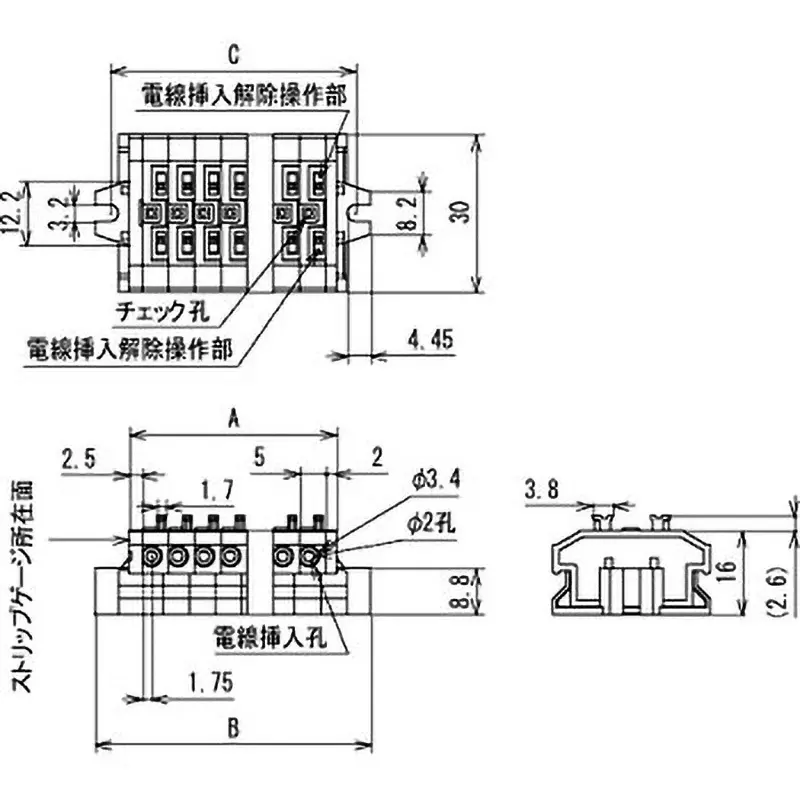

Dimensions A (mm) |
54.5 |
Monotaro ID |
6953134 |
No. of Pole |
10 Pole |
Dimensions B (mm) |
67.5 |
Dimensions C (mm) |
62.5 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Pack of |
1 Pcs |
Terminal Spacing |
5 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Applicable Standard |
UL standard (compatible with field wiring), CSA standard, TUV standard (IEC60947-7-1) |
Insulator Material |
Body: Nylon 66 (UL94V-0) Button: PPE (UL94V-0) |
Terminal Connection Type |
Screwless |
Insulation_Resistance (MΩ) |
100 mΩ or More (DC500V) |
Rating of Suitable Cable |
Single line: Φ1.2mm (AWG16), twisted wire: 1.25mm² (AWG16) |
Standard Cable Stripping Length (mm) |
10 |
Recommended Tool |
Slotted screwdriver (shaft diameter Φ3mm, cutting edge width 2.6mm) |
Suitable Cable Range |
Single line: Φ0.4mm ~ Φ1.2mm (AWG26 ~ AWG16 ), twisted wire: 0.3mm² ~ 1.25mm² wire diameter Φ0.18mm more |
Color of Operating Part |
W (white) |
Mechanism |
Check hole available |
