| Type | SL terminal block for relay |
| Model No | ML-1700-B-10P |

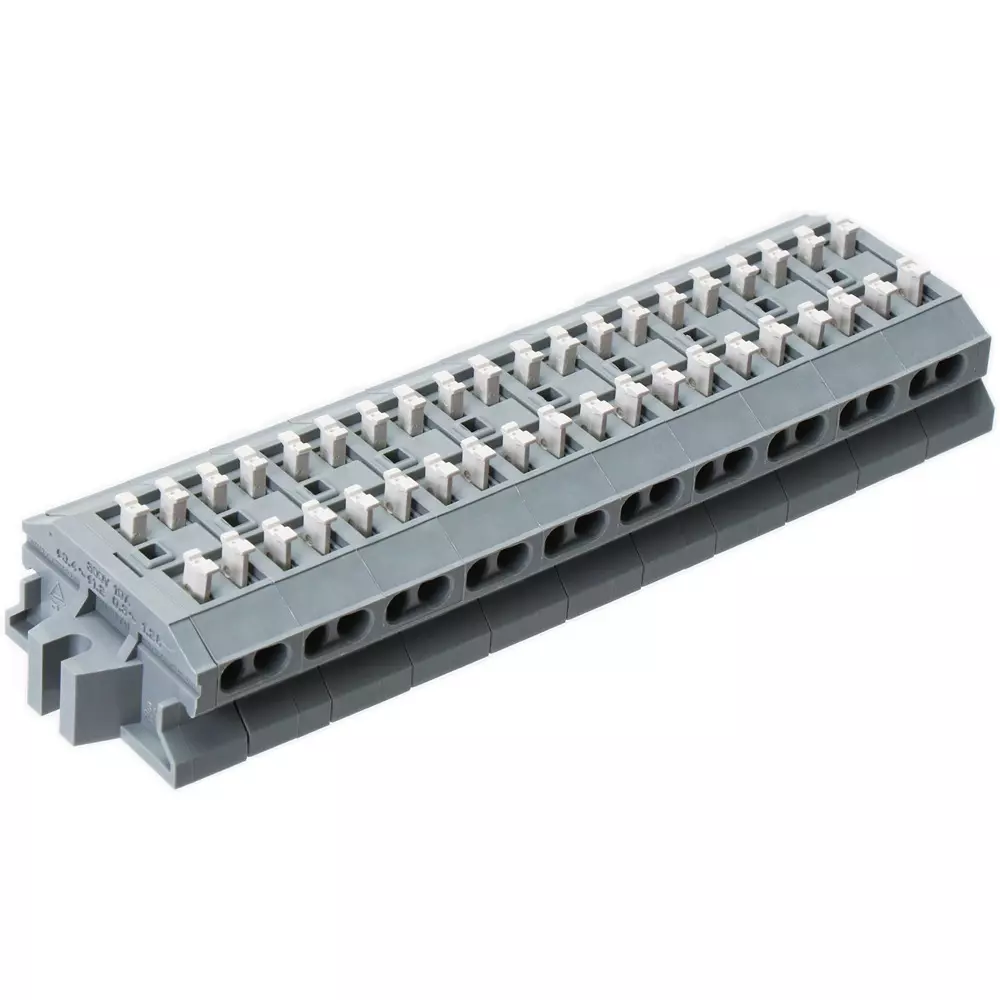

| Type of Product | Screwless Terminal Block for Relay ML-1700-B |
| Rated Voltage (V) | 300 |
Type |
SL terminal block for relay |
Model No |
ML-1700-B-10P |
Type of Product |
Screwless Terminal Block for Relay ML-1700-B |
Rated Voltage (V) |
300 |

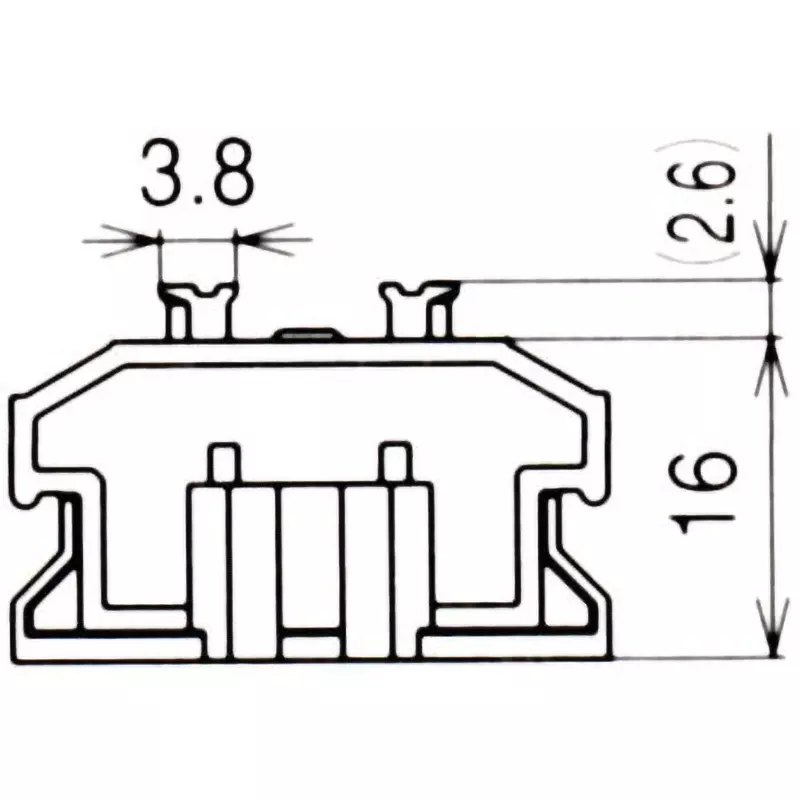

Dimensions A (mm) |
104.5 |
Monotaro ID |
8616097 |
No. of Pole |
10 Pole |
Contact Resistance |
20 mΩ or less (initial value) |
Dimensions B (mm) |
117.5 |
Dimensions C (mm) |
112.5 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Pack of |
1 Pcs |
Terminal Spacing |
10 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Applicable Standard |
UL standard (compatible with field wiring), CSA standard, TUV standard (IEC60947-7-1) |
Insulator Material |
Body: Nylon 66 (UL94V-0) <br> Button: PPE (UL94V-0) |
Terminal Connection Type |
Screwless |
Insulation_Resistance (MΩ) |
100 mΩ or More (DC500V) |
Rating of Suitable Cable |
Single line: Φ1.2mm (AWG16), twisted wire: 1.25mm² (AWG16) |
Standard Cable Stripping Length (mm) |
10 |
Recommended Tool |
Slotted screwdriver (shaft diameter Φ3mm, cutting edge width 2.6mm) |
Suitable Cable Range |
Single line: Φ0.4mm ~ Φ1.2mm (AWG26 ~ AWG16 ), twisted wire: 0.3mm² ~ 1.25mm² wire diameter Φ0.18mm more |
Mechanism |
Check hole available |
